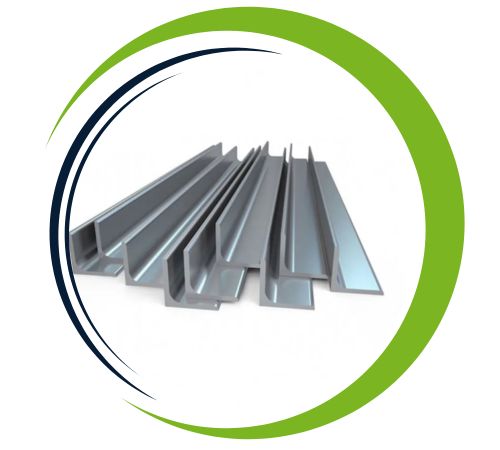

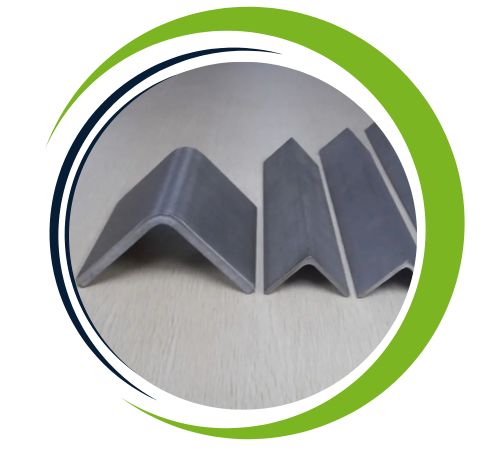

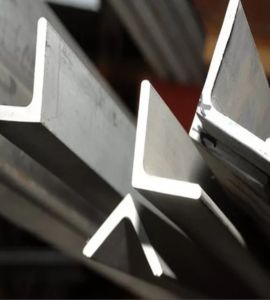

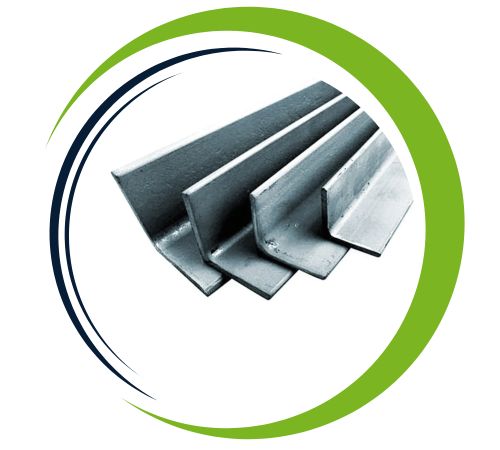

Al Shakru Sheets and Plates, based in Dubai, UAE, has established a strong reputation as a dependable manufacturer and supplier of Stainless Steel 317 Angles . These angles are renowned for their remarkable corrosion resistance, strength, and durability. Made from molybdenum-bearing austenitic stainless steel, they offer superior protection against pitting, crevice corrosion, and chemical attacks, particularly in settings rich in chlorides and acids. Al Shakru Sheets and Plates is committed to precision manufacturing and stringent quality control, guaranteeing that their 317 angles are high-performing and well-suited for a range of industrial, marine, and structural applications. With a firm emphasis on quality and reliability, the company supplies products that consistently deliver strong performance even under the harshest operating conditions.
Stainless Steel 317 Angles consist of chromium (18–20%), nickel (11–15%), and molybdenum (3–4%), elements that markedly enhance their resistance to corrosion and chemical stability. They feature a tensile strength of roughly 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. Having a density of 8.0 g/cm³ and a melting range spanning 1370–1400°C, these angles retain notable mechanical strength, toughness, and weldability, guaranteeing reliable performance in high-temperature and harsh conditions.
| Specifications | : | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 317 Angle | : | 5mm to 9mm |
| SS 317 Channel | : | 40mm*20mm~300mm*300mm |
| SS 317 Beam | : | 3″ thru 12.31″ |
| SS 317 Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, headquartered in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on supplying superior products, we serve a broad array of industries, delivering dependable solutions for varied applications. Our comprehensive stock features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
The stainless steel 317 angle delivers outstanding resistance to corrosion, particularly in chloride and acidic settings, which makes it perfect for extreme conditions and highly durable, maintaining its strength and integrity at high temperatures. The alloy withstands pitting and crevice corrosion, extending its lifespan in demanding applications. Stainless steel 317 is readily fabricated and welded, offering flexibility across a range of architectural and industrial uses. Its superb performance in pharmaceutical, food processing and marine settings makes it dependable for applications that demand high resistance loss.
Stainless Steel 317 Angles are suited to a range of uses that call for strong corrosion resistance and structural durability. They work excellently for chemical processing equipment, marine structures, heat exchangers, pressure vessels, and offshore platforms. In addition, they serve in architectural and industrial frameworks, power generation units, and machinery used in food and pharmaceutical processing. Because they can resist acids, chlorides, and oxidizing environments, they ensure durable performance, which makes them well-suited for fabrication, structural, and high-performance engineering uses in demanding conditions.
