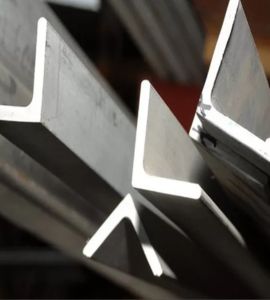

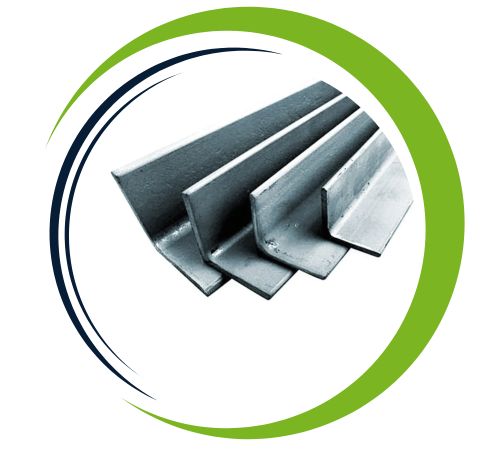

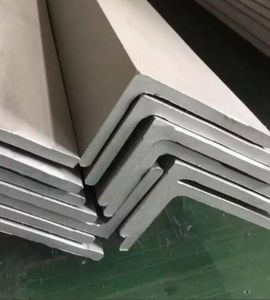

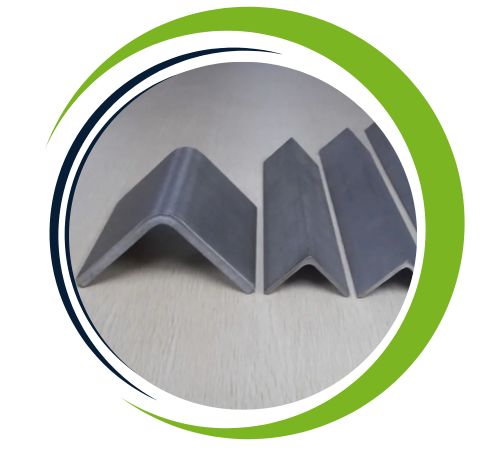

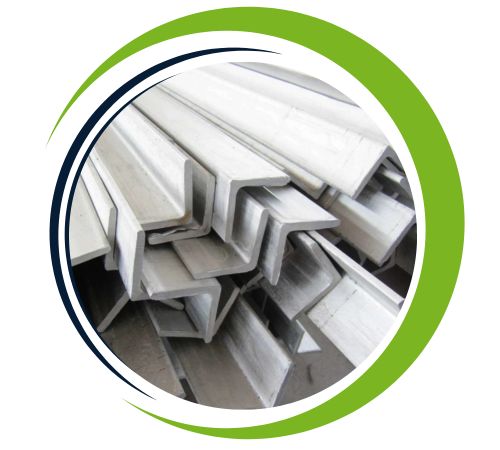

Al Shakru Sheets and Plates, based in Dubai, UAE, is recognized as a leading manufacturer and supplier of Stainless Steel 310S Angles . These angles are renowned for their outstanding high-temperature strength, resistance to corrosion, and overall durability. Made from a special mix of high-chromium, high-nickel austenitic stainless steel with low carbon content, they deliver superb oxidation resistance and stop carbide precipitation even under extreme heat. Al Shakru Sheets and Plates is dedicated to precision manufacturing and strict quality control, guaranteeing that their 310S angles comply with international standards. Ideal for industrial, chemical, and power generation uses, these angles ensure long-lasting structural integrity, dependable performance, and resistance to scaling and corrosion in demanding operating environments.
Stainless Steel 310S Angles consist of chromium (24–26%) and nickel (19–22%), combined with a low carbon content that enhances their resistance to corrosion and their stability at high temperatures. They offer a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. Featuring a density of 8.0 g/cm³ and a melting range of 1390–1425°C, these angles retain outstanding toughness, weldability, and formability, guaranteeing dependable mechanical performance in high-temperature and oxidizing conditions.
Standard : ASTM / ASME A276 / SA276
Angle Size : 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm etc.
Flat Size : 2mm ~ 100mm etc.
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length
Finish : Hot rolled (HR), Cold rolled (CR), Galvanized etc
| Element | SS 310S |
| C | 0.08 max |
| Mn | 2.0 max |
| Si | 1.00 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 24 – 26 |
| Ni | 19 – 21 |
| Mo | 0.75 max |
| Fe | 53.095 min |
| Element | SS 310S |
| Density | 7.9 g/cm3 |
| Melting Point | 1402 °C (2555 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | – | X8CrNi25-21 |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on supplying superior products, we serve a broad array of industries, offering dependable solutions for varied applications. Our large inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
The stainless steel 310S angle offers several advantages, including excellent resistance to high temperature oxidation and corrosion, making it ideal for high temperature environments High strength and durability, time saving long system integrity even under extreme conditions. The alloy is also highly resistant to sulfidation and carburization, which is an advantage in hot, humid environments. The lower carbon content reduces carbide precipitation during welding, resulting in improved weldability. In addition, the stainless steel 310S angle retains excellent mechanical properties at high temperatures, making it suitable for industrial applications such as furnaces, heat exchangers and chemical processors.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 310S Angles are used across a range of applications that call for high-temperature durability and resistance to corrosion. They work exceptionally well for furnace components, heat exchangers, boilers, chimneys, and chemical processing equipment. On top of that, they serve power generation, petrochemical, and industrial frameworks where thermal stability, structural strength, and oxidation resistance are critical. Because they perform so well in intense heat and corrosive environments, they are well suited for structural, industrial, and high-performance engineering projects.
