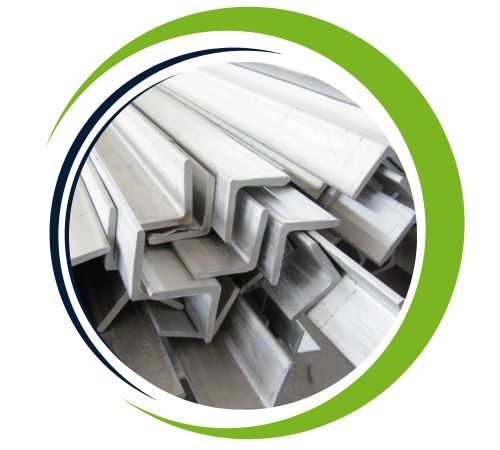

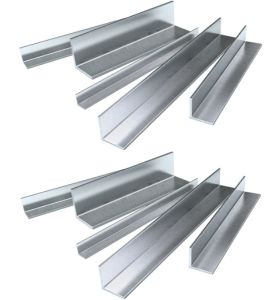

Al Shakru Sheets and Plates, based in Dubai, UAE, is a trusted manufacturer and supplier of Stainless Steel 305 Angles . These angles are renowned for their exceptional corrosion resistance, remarkable ductility, and enduring durability. Made from austenitic stainless steel featuring a high nickel content, they offer superb formability and withstand intergranular corrosion. At Al Shakru Sheets and Plates, precise manufacturing and stringent quality control work in tandem to guarantee that their 305 angles satisfy international standards. Ideal for chemical, industrial, and architectural applications, these angles ensure structural integrity, reliable performance, and resistance to oxidizing environments, making them well-suited for demanding fabrication and high-performance operational requirements.
Stainless Steel 305 Angles consist of chromium (18–20%) and nickel (12–15%), elements that markedly enhance their resistance to corrosion, their ductility, and their mechanical stability. They feature a tensile strength of roughly 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. Having a density of 8.0 g/cm³ and a melting range spanning 1400–1450°C, these angles are recognized for their toughness, weldability, and formability, delivering dependable performance even in moderate to harsh environments.
| Specifications | ASTM A240 / ASME SA240 | ||||||
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
| Grade | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness | |
| Rockwell B (HRB) | Brinell (HB) | ||||
| 305 | 480 | 177 | 40 | 90 | 187 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 305 | Min. | / | / | / | / | / | 17 | / | 10.5 | / |
| Max. | 0.12 | 2 | 0.75 | 0.045 | 0.03 | 19 | / | 13 | / |
| ASTM | UNS No. | ISO | Euronorm | China GB | Japanese JIS | ||
| No. | Name | ||||||
| 305 | S30500 | X6CrNi 18-12 | 1.4303 | X6CrNi 18-12 | 10Cr18Ni12 | SUS 305 | |
We provide products supplied with both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on delivering excellent products, we serve a broad array of industries, offering dependable solutions for varied applications. Our large inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Stainless steel 305 angleprovides numerous benefits, such as outstanding corrosion resistance, superb strength and durability, particularly in locations exposed to moisture and dampness, and makes it well suited for construction uses. The alloy’s resistance to corrosion and staining keeps it durable while needing minimal upkeep. Stainless steel 305 additionally demonstrates great formability, which makes it simple to shape and weld. Furthermore, thanks to its non-reactive surface, it retains its form over an extended period. This renders it appropriate for sectors like construction, automotive and marine, where high-performance materials matter greatly.
Stainless Steel 305 Angles are used across numerous applications requiring corrosion resistance along with high ductility. They work especially well for chemical processing units, architectural frameworks, heat exchangers, kitchen and food processing equipment, and pressure vessels. In addition, they serve in industrial and structural components where strength, durability, and resistance to oxidizing environments are critical. Their outstanding performance makes them a leading option for fabrication, structural, and high-performance engineering applications throughout a variety of industries.
