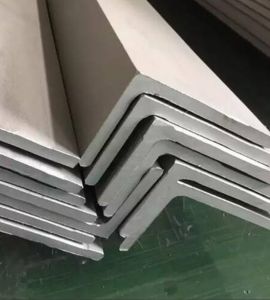

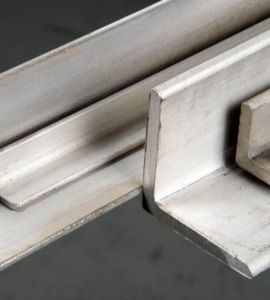

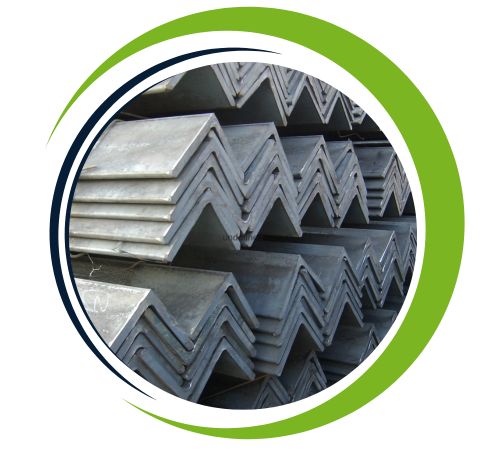

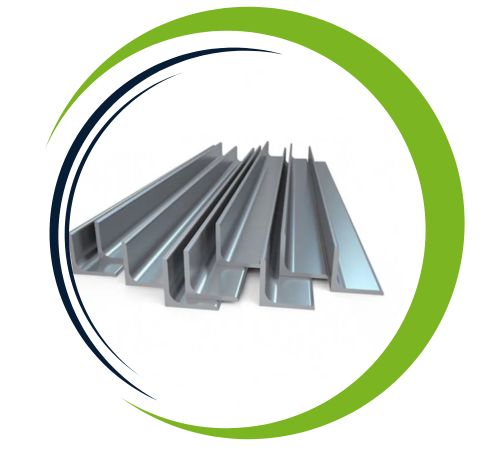

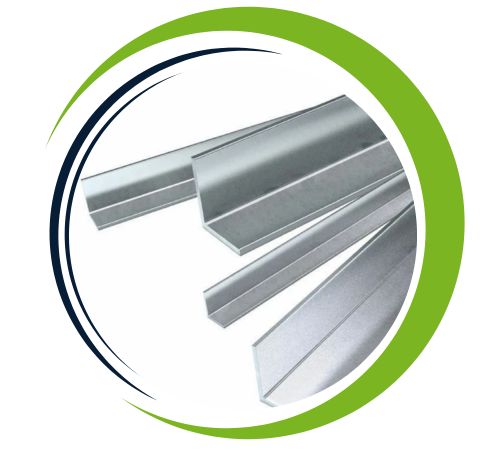

Al Shakru Sheets and Plates, based in Dubai, UAE, is recognized as a leading manufacturer and supplier of Stainless Steel 309H Angles . These angles are valued for their outstanding high-temperature strength, corrosion resistance, and overall durability. Made from high-chromium, high-nickel austenitic stainless steel with an increased carbon content, they deliver enhanced creep resistance and mechanical stability even under extreme heat. Al Shakru Sheets and Plates is dedicated to precise manufacturing and strict quality control, guaranteeing that their 309H angles comply with international standards. Ideal for industrial, chemical, and power generation applications, these angles ensure long-lasting performance, structural integrity, and resistance to scaling and oxidation in demanding operational environments.
Stainless Steel 309H Angles contain chromium (23–25%) and nickel (12–15%), together with an elevated carbon content that improves their strength at high temperatures and resistance to creep. They offer a tensile strength of roughly 620 MPa, a yield strength of 310 MPa, and an elongation of 35%. Featuring a density of 8.0 g/cm³ and a melting range of 1400–1450°C, these angles provide outstanding toughness, weldability, and mechanical stability under high temperatures and corrosive conditions.
Specifications :ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range :20 x 20 mm to 100 x 100 mm
Angles Thickness :3 to 12 mm (varies by size)
Channel Size Range :Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness :5 to 6 mm (varies by size)
Length :3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Lengths
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 309 | min. | – | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 20.0 | 10.5 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 309 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % | 92 | 201 |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 309 | S30900 | – | – | 1.4828 | – | – | – |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on supplying superior products, we serve a broad spectrum of industries, offering dependable solutions for varied applications. Our comprehensive inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
The stainless steel 309H angle delivers superb resistance to high temperatures, which makes it perfect for hot settings. Its elevated chromium and nickel levels give exceptional resistance to oxidation and corrosion, along with toughness in severe conditions. A high carbon level boosts its creep strength, making it well suited to prolonged exposure at high temperatures. It shows great weldability and formability, so it is simple to fabricate for structural uses. On top of that, its robust mechanical characteristics and resistance to heater fatigue make it dependable for sectors like power generation, chemical processing and manufacturing, guaranteeing long service life and solid performance.
Stainless Steel 309H Angles are widely employed across industries requiring high-temperature performance and resistance to corrosion. They are especially well-suited for furnace components, heat exchangers, boilers, chimneys, and chemical processing equipment. Additionally, they serve applications in power generation, petrochemical, and industrial frameworks where thermal stability, durability, and oxidation resistance are critical. Their exceptional performance under extreme heat and in corrosive conditions makes them perfect for structural, industrial, and high-performance engineering projects.
