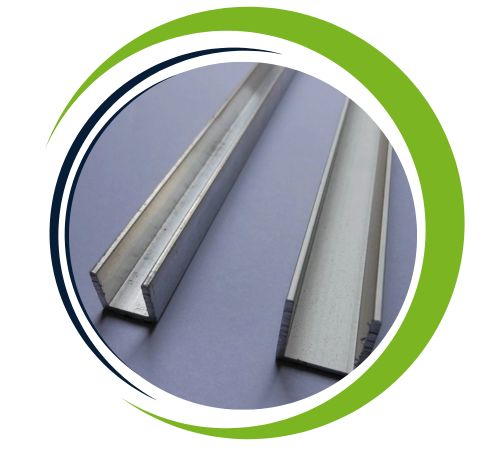

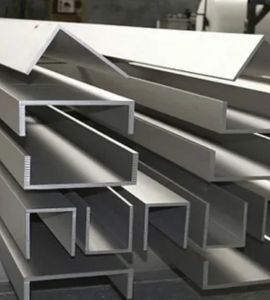

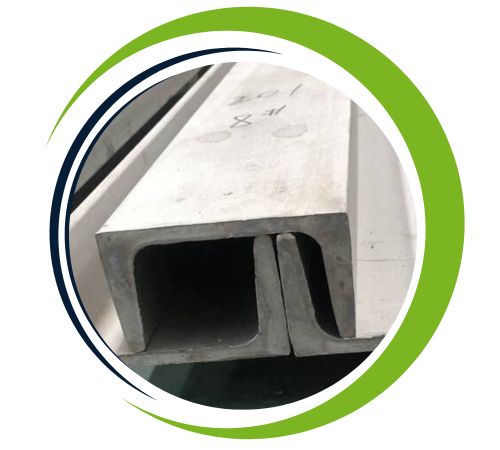

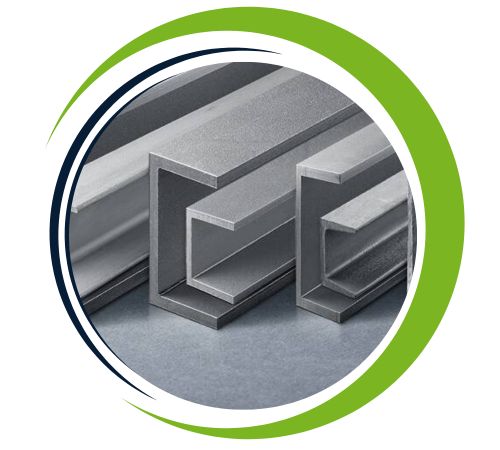

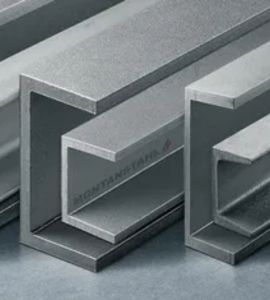

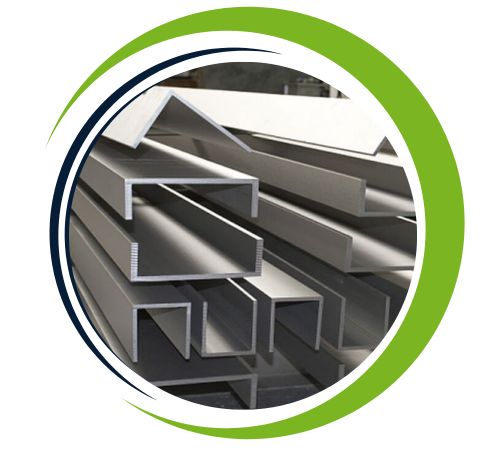

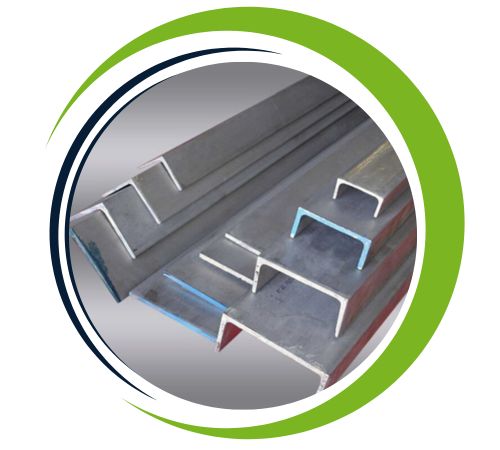

Al Shakru Sheets and Plates, a leading manufacturer and supplier based in Dubai, UAE, is proud to offer their premium-quality Stainless Steel 904L Channels . These channels are renowned for their exceptional corrosion resistance, strength, and durability. Engineered to perform in highly corrosive and demanding conditions, they’re ideal for use in chemical, petrochemical, marine, and offshore industries. Al Shakru Sheets and Plates ensures careful manufacturing and rigorous compliance with international standards, so that their Stainless Steel 904L Channels deliver excellent weldability, toughness, and accurate dimensions. Offering impressive resistance to pitting, crevice corrosion, and stress corrosion cracking, these channels are a reliable option for structural and industrial projects that must endure tough conditions over the long term.
Stainless Steel 904L Channels are composed mainly of iron, containing 20–23% chromium, 25–28% nickel, 4–5% molybdenum, together with small quantities of copper and carbon. This high-alloy austenitic stainless steel is recognized for its outstanding resistance to corrosion in harsh environments. It displays a tensile strength between 500–700 MPa, a yield strength of 210–310 MPa, and remarkable elongation characteristics. The material is not just strong but also delivers excellent weldability and formability, which makes it well suited for structural and high-performance industrial uses that require both longevity and protection against chemical attack.
| Specifications | : | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 904L Angle | : | 5mm to 9mm |
| SS 904L Channel | : | 40mm*20mm~300mm*300mm |
| SS 904L Beam | : | 3″ thru 12.31″ |
| SS 904L Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19.0-23.0 | 4.0-5.0 max | 23.00 – 28.00 | 1.0-2.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35% |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, headquartered in Dubai, UAE, is a top supplier and stockist of premium metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on delivering exceptional products, we serve a broad spectrum of industries, offering dependable solutions for varied applications. Our vast inventory includes Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Stainless Steel 904L Channeloffers outstanding protection against corrosion, especially in demanding environments like those containing high levels of acids, chlorides, and sulfides. Its elevated nickel and molybdenum content deliver excellent resistance to pitting, crevice corrosion, and stress corrosion cracking. The alloy’s remarkable weldability and formability make it perfect for intricate structures. Combining high strength with durability, it works well for challenging applications across the chemical, petrochemical, and marine industries. Stainless Steel 904L Channels also preserve their integrity in high-temperature conditions, delivering lasting performance and lower maintenance expenses.
Yes,we offer custom sizes for Stainless Steel 904L Channel to suit particular project requirements. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for every one of your needs. For further information, reach out to us at sales@alshakruplates.ae.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
You’ll commonly see Stainless Steel 904L Channels put to use in chemical processing plants, offshore structures, desalination facilities, and a range of marine applications. They work ideally for structural frameworks, piping supports, tanks, and equipment exposed to strong acids, chlorides, and harsh environmental conditions. Across sectors such as petrochemical, pharmaceutical, and high-performance industries, these channels offer dependable structural support and long-lasting corrosion resistance. Thanks to their combination of mechanical strength, durability, and resistance to aggressive chemicals, Stainless Steel 904L Channels from Al Shakru Sheets and Plates deliver steady, enduring performance across a wide variety of applications.
