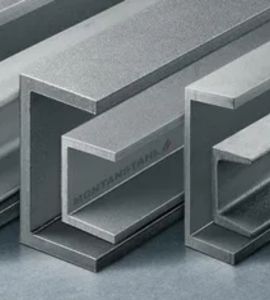

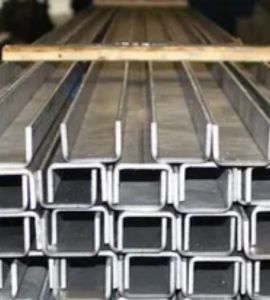

Al Shakru Sheets and Plates, a dependable manufacturer and supplier based in Dubai, UAE, focuses on premium Stainless Steel 420 Channels that are renowned for their remarkable hardness, wear resistance, and reasonable corrosion resistance. Built with accuracy and longevity in mind, these channels perform exceptionally in challenging industrial, engineering, and tooling applications. Manufactured to comply with international standards, Al Shakru Sheets and Plates’ Stainless Steel 420 Channels deliver outstanding dimensional precision, mechanical strength, and toughness. Their capacity to withstand abrasion, mild corrosive conditions, and mechanical stress makes them ideal for durable structural and machinery uses, ensuring dependability, high performance, and operational efficiency in industrial, architectural, and high-wear environments.
Constructed primarily from iron, Stainless Steel 420 Channels contain roughly 12–14% chromium together with small quantities of carbon, manganese, and silicon. This martensitic stainless steel is recognized for its moderate corrosion resistance, exceptional hardness, and resistance to wear. It features a tensile strength between 450–750 MPa and a yield strength of 250–550 MPa, as well as good toughness. The material additionally provides dimensional stability, weldability, and formability, which makes it well suited for structural, tooling, and industrial applications requiring durability and strong mechanical performance.
| Specifications | ASTM A276 | ||||||
| Diameter | 3、5、6、7、8、9、10、12、15、18、20、25、30、35、40、50、100、200etc | ||||||
| Length | 2000mm, 2500mm, 3000mm,3500mm, 4000mm 5000mm 6000mm 10000mm 12000mm etc | ||||||
| Surface | Black 、 bright、 pickling 、etc | ||||||
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), | ||||||
| Form | Channel, Round, Channel Bar, Rings, Round Channel, TriChannel, Hollow, RectChannel, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. | ||||||
| Grade | C | Mn | Si | P | S | Cr | Ni |
| 420 | 0.15 max | 1.00 max | 1.00 max | 0.04 max | 0.03 max | min: 12.0 max: 14.0 | – |
| 420C | 0.42 – 0.50 | 1.00 | 1.00 max | 0.04 | 0.03 | 12.5 – 14.5 | 1.00 Max |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Hardness | Elongation |
| SS 420 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 95000 , MPa – 515 | Psi – 50000 , MPa – 205 | 175 | 35 % |
| SS 420C | 8.0 g/cm3 | 600°F (316°C) | 1580 | 1365 | 444 | 14% |
Our offerings include mill test certificates as well as third-party test certificates, guaranteeing top-tier quality and compliance standards.
Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on supplying superior products, we serve a broad spectrum of industries, offering dependable solutions for varied applications. Our large inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Stainless Steel 420 Channelprovides numerous benefits, such as outstanding hardness and strength, making it perfect for wear-resistant applications. Its moderate corrosion resistance, together with high tensile strength, makes it well-suited for environments where both mechanical performance and durability matter. The capacity to be hardened via heat treatment improves its resistance to wear and tear, guaranteeing long-lasting performance under demanding conditions. The channel’s superb machinability and weldability enable easy fabrication, while its resistance to high-stress environments makes it perfect for applications in the automotive, manufacturing, and construction industries.
Yes,we offer custom sizes for Stainless Steel 420 Channel to fit particular project requirements. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all your needs. For further information, reach out to us at sales@alshakruplates.ae.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 420 | 1.4021 | S42000 | SUS 420 J1 | 420S29 | – | – | FeMi35Cr20Cu4Mo2 |
| SS 420C | 1.4034 |
S44004 |
– | – | 08Ch17N13M2T | Z44Cr13 | X46Cr13 |
Stainless Steel 420 Channels are widely applied across the aerospace, automotive, marine, and industrial machinery sectors. They work exceptionally well for producing shafts, gears, bearings, valves, cutting tools, and structural components subject to heavy wear. Within tooling and industrial environments, these channels provide durable performance in situations where hardness, abrasion resistance, and moderate corrosion resistance matter most. Combining mechanical strength, toughness, and durability, Stainless Steel 420 Channels from Al Shakru Sheets and Plates are ideal for structural supports, precision machinery parts, and a range of industrial uses.
