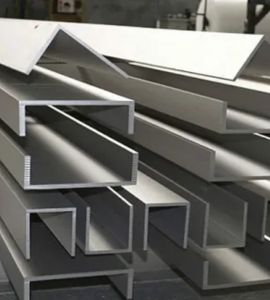

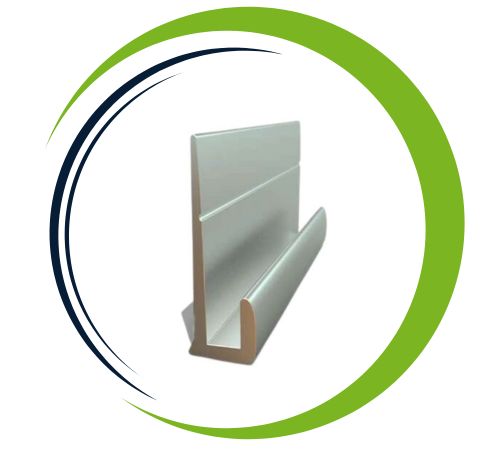

Al Shakru Sheets and Plates, based in Dubai, UAE, is recognized as a leading manufacturer and supplier of Stainless Steel 309H Channels . These channels are valued for their exceptional strength at high temperatures, resistance to corrosion, and general durability. Made from a distinctive mix of high-chromium, high-nickel austenitic stainless steel with an increased carbon content, they deliver superior creep resistance and mechanical stability even under high temperatures. Al Shakru Sheets and Plates dedicates itself to precise manufacturing and strict quality control, guaranteeing that their 309H channels comply with international standards. Ideal for industrial, chemical, and power generation uses, these channels ensure durable performance, structural integrity, and reliable operation in demanding, high-temperature, and corrosive environments.
Stainless Steel 309H Channels consist of chromium (23–25%), nickel (12–15%), and an elevated carbon level that improves their strength at high temperatures along with creep resistance. They deliver a tensile strength of roughly 620 MPa, a yield strength of 310 MPa, and elongation reaching 35%. Featuring a density of 8.0 g/cm³ and a melting range spanning 1400–1450°C, these channels offer outstanding toughness, weldability, and mechanical stability under both elevated temperatures and corrosive conditions.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, headquartered in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on supplying first-rate products, we serve a broad spectrum of industries, offering dependable solutions for varied applications. Our large inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and premium products.
Stainless Steel 309H Channeloffers a wealth of benefits, such as outstanding resistance to oxidation and scaling under high temperatures, which makes it perfect for extreme thermal settings. Its elevated carbon content boosts strength, guaranteeing durability in uses that demand heat resistance up to 1,000°C (1,832°F). This alloy exhibits strong resistance to corrosion, especially in high-temperature, acidic, and oxidizing environments. On top of that, Stainless Steel 309H delivers excellent weldability and formability, which makes it simple to fabricate. Its solid mechanical properties combined with heat resistance make it a favored option for sectors such as aerospace, chemical processing, and power generation.
Yes,we offer custom sizes for Stainless Steel 309H Channel to fit particular project requirements. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all your needs. For further information, reach out to us at sales@alshakruplates.ae.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |
These Stainless Steel 309H Channels are widely employed in situations that call for excellent high-temperature performance and corrosion resistance. They work well for parts in furnaces, heat exchangers, boilers, chimneys, and chemical processing equipment. Additionally, they are used in power generation, petrochemical plants, and architectural frameworks where strength, durability, and oxidation resistance are crucial. Their remarkable thermal stability and scaling resistance make them an excellent option for structural and industrial applications in demanding, high-temperature environments.
