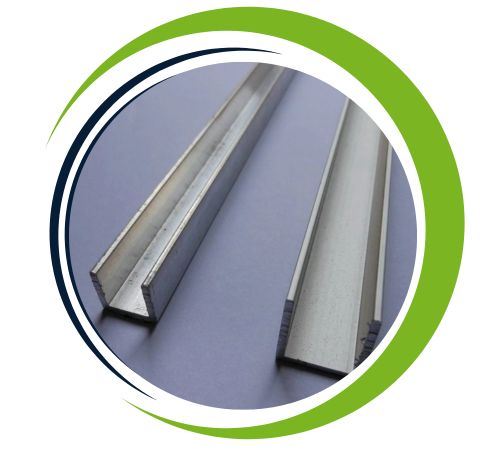

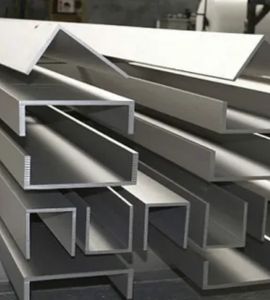

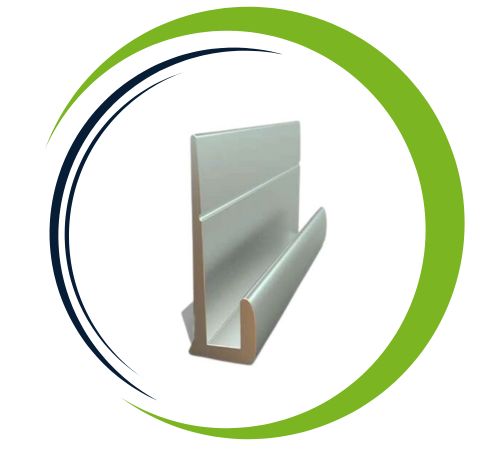

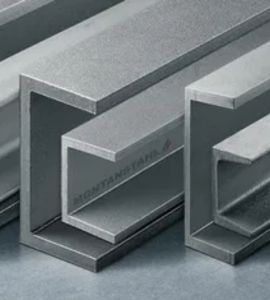

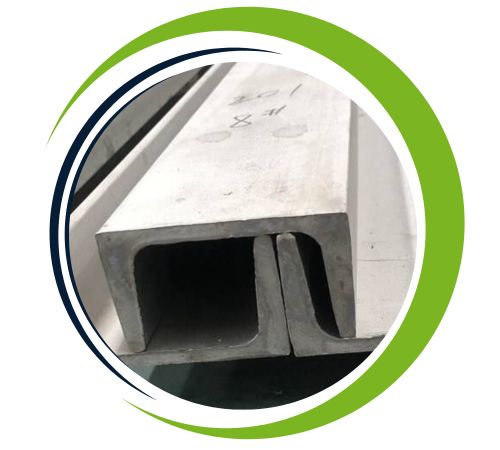

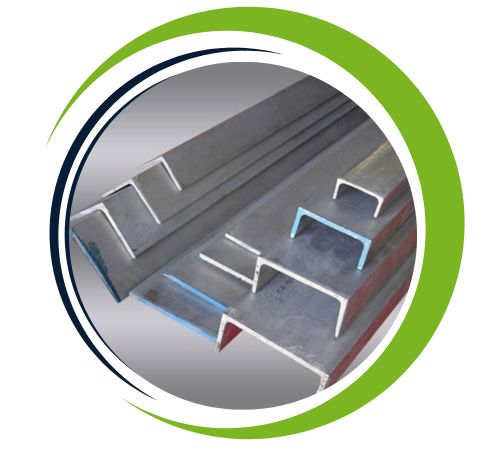

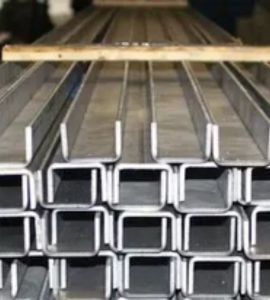

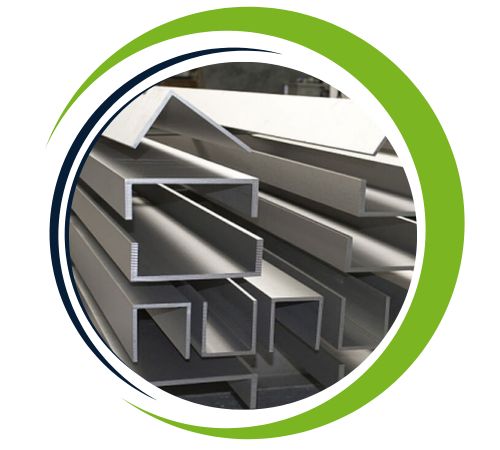

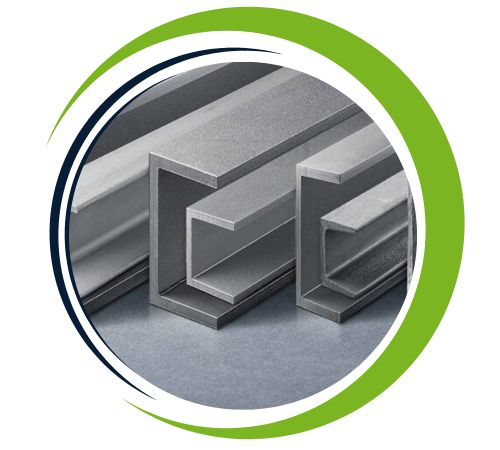

Al Shakru Sheets and Plates, based in Dubai, UAE, distinguishes itself as a leading manufacturer and supplier of Stainless Steel 310 Channels . These channels are renowned for their outstanding high-temperature strength, resistance to corrosion, and general durability. Made from high-chromium, high-nickel austenitic stainless steel, they are engineered to withstand extreme heat and oxidizing conditions while maintaining their structural integrity. At Al Shakru Sheets and Plates, precision manufacturing and rigorous quality control take priority, guaranteeing that their 310 channels comply with international standards. Ideal for industrial, chemical, and power generation uses, these channels provide durable performance, impressive mechanical strength, and resistance to scaling and corrosion, even under the most demanding operational conditions.
Stainless Steel 310 Channels consist of chromium (24–26%) and nickel (19–22%), elements that give them their remarkable strength at high temperatures and resistance to oxidation. They deliver a tensile strength of approximately 515 MPa, a yield strength of 205 MPa, and 40% elongation. Featuring a density of 8.0 g/cm³ and a melting range spanning 1390–1425°C, these channels retain outstanding toughness, weldability, and formability, guaranteeing dependable performance under elevated temperatures and corrosive environments.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fit our customers particular needs. With an emphasis on supplying superior products, we serve a broad spectrum of industries, delivering trustworthy solutions for varied applications. Our vast inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Stainless Steel 310 Channelprovides outstanding high-temperature resistance, making it well-suited for applications subjected to extreme heat. Its elevated chromium and nickel content deliver superior oxidation and corrosion resistance, guaranteeing lasting durability in demanding environments. The alloy’s capacity to retain strength and stability at temperatures reaching 1,100°C (2,012°F) makes it ideal for use in high-heat applications like furnaces and heat exchangers. Stainless Steel 310 also exhibits strong resistance to scaling, guaranteeing dependable performance in aggressive settings. Furthermore, it delivers excellent weldability and formability for easy fabrication.
Yes,we offer custom sizes for Stainless Steel 310 Channel to suit particular project requirements. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for every one of your needs. For further information, reach out to us at sales@alshakruplates.ae.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |
Stainless Steel 310 Channels are used across a range of applications requiring resistance to high temperatures and corrosion. They are commonly found in furnace parts, boilers, heat exchangers, chimneys, and chemical processing equipment. They also play a vital role in power generation, petrochemical facilities, and industrial structures where thermal stability, load-bearing strength, and oxidation resistance matter. Because they perform so well under intense heat and corrosive conditions, they are perfectly suited for industrial, structural, and high-performance engineering uses.
