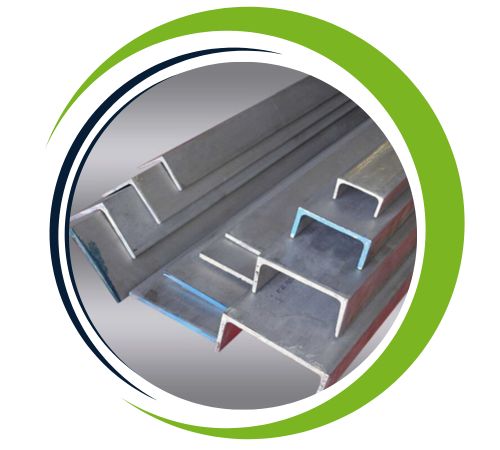

Al Shakru Sheets and Plates, based in Dubai, UAE, is a trusted manufacturer and supplier of Stainless Steel 316 Channels . These channels are renowned for their remarkable corrosion resistance, notable strength, and lasting durability. Made from molybdenum-bearing austenitic stainless steel, they deliver superior protection against pitting, crevice corrosion, and chemical attacks, particularly in chloride-heavy environments and marine settings. Al Shakru Sheets and Plates is dedicated to precise manufacturing and stringent quality control, guaranteeing that their 316 channels comply with international standards. Ideal for industrial, marine, and structural applications, these channels ensure lasting performance, structural integrity, and reliable operation even under the harshest conditions.
Stainless Steel 316 Channels consist of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), elements that markedly enhance their resistance to corrosion and mechanical stability. They feature a tensile strength of approximately 515 MPa, a yield strength of 205 MPa, and 40% elongation. Having a density of 8.0 g/cm³ and a melting range spanning 1375–1400°C, these channels provide outstanding toughness, weldability, and formability, guaranteeing dependable performance under both elevated temperatures and demanding environmental conditions.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on delivering exceptional products, we serve a broad range of industries, offering dependable solutions for varied applications. Our large inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Stainless Steel 316 Channelsoffer many benefits, including outstanding resistance to corrosion, especially in chloride and marine settings. The inclusion of molybdenum improves its capacity to endure aggressive chemicals, acids, and saltwater, making it perfect for sectors like marine, chemical processing, and food production. Boasting great strength, durability, and heat resistance, it functions effectively in high-temperature uses. The material’s superb weldability and formability enable straightforward fabrication. Furthermore, Stainless Steel 316 offers strong resistance to pitting and crevice corrosion, guaranteeing lasting reliability and low maintenance in demanding conditions.
Yes,we offer custom sizes for Stainless Steel 316 Channel to suit particular project requirements. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for every one of your needs. For further information, reach out to us at sales@alshakruplates.ae.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |
Stainless Steel 316 Channels are suited to a wide range of applications requiring both high corrosion resistance and structural strength. They work well in chemical processing plants, marine structures, heat exchangers, pressure vessels, and offshore platforms. In addition, they serve architectural and industrial frameworks, power generation units, and machinery used in food or pharmaceutical processing. Their outstanding resistance to acids, chlorides, and oxidizing conditions ensures lasting durability and reliable performance, even in demanding industrial and coastal environments.
