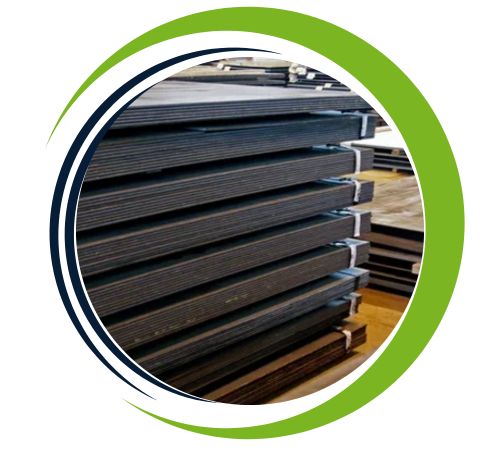

Al Shakru Sheets and Plates is a premier manufacturer and supplier based in Dubai, UAE, with expertise in high-quality SA516 Grade 60 Boiler Sheets and Plates . These sheets and plates are recognized for their remarkable strength, toughness, and dependability, even under moderate to high-pressure and temperature conditions. They’re built to satisfy strict industrial standards, reflecting Al Shakru Sheets and Plates’ dedication to precision manufacturing, reliable quality, and customized solutions that address a range of client requirements. SA516 Grade 60 Boiler Sheets and Plates are frequently applied in boilers, pressure vessels, and heat exchangers, where they provide long-lasting performance and safety. The company takes pride in serving numerous industrial sectors throughout UAE and beyond, supported by their trusted expertise.
When it comes to composition, SA516 Grade 60 Boiler Sheets and Plates are manufactured from carbon steel, generally containing 0.27% carbon, 0.85–1.20% manganese, along with small quantities of phosphorus and sulfur . This mixture provides them with solid strength, outstanding weldability, and toughness, making them ideal for pressure applications. On the mechanical front, SA516 Grade 60 features a tensile strength of 485–620 MPa , a yield strength of about 260 MPa , and an elongation of 21–23% , guaranteeing dependable performance under high-pressure conditions. Their toughness and resistance to brittle fracture make them well suited for medium-pressure boilers and a range of industrial uses.
Grade : ASME SA 516 GR.60 Steel Plates for Boilers and Pressure Vessels
Width : 1250mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
SA516 Grade 60 boiler sheet and plate deliver outstanding strength and durability, which makes them perfect for pressure vessel and boiler uses. Recognized for their crack resistance, they perform exceptionally well in high-temperature and high-pressure conditions. The steel’s weldability and simple fabrication add even more to its versatility. Because it can endure moderate to high stress levels without sacrificing performance, it is well-suited for the power generation and chemical industries. SA516 Grade 60 additionally provides good toughness, which makes it dependable for long-term service in demanding applications.
You’ll see SA516 Grade 60 Boiler Sheets and Plates commonly used in building boilers, pressure vessels, heat exchangers, and steam generators that operate under moderate to high pressures and temperatures. They’re equally well-suited for chemical and petrochemical equipment, storage tanks, and industrial machinery that require lasting durability and safety. Owing to their outstanding weldability, toughness, and steady mechanical properties, SA516 Grade 60 is an excellent choice for structural and pressure-related uses. Offering a fine balance of strength, reliability, and corrosion resistance, these materials deliver dependable performance across power plants, manufacturing, and engineering projects.
