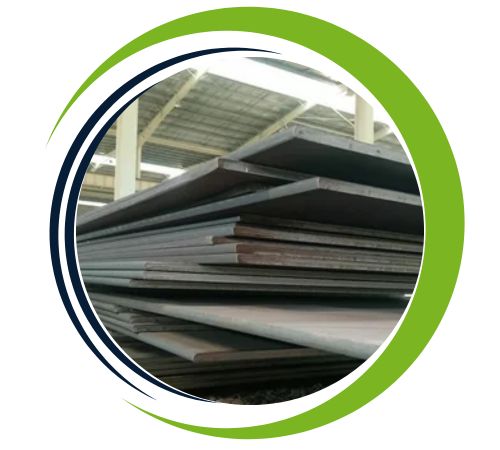

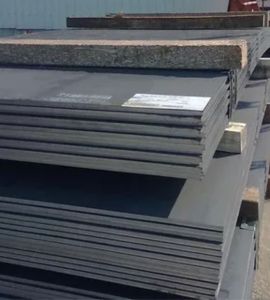

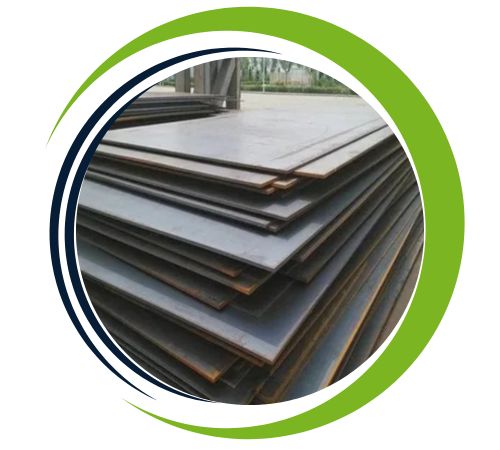

Al Shakru Sheets and Plates is your trusted manufacturer and supplier of Boiler Quality (BQ) Sheets and Plates , proudly located in Dubai, UAE . We focus on delivering premium materials engineered to withstand the most demanding industrial requirements. Our BQ Sheets and Plates are renowned for their outstanding strength, durability, and heat resistance, guaranteeing excellent performance in high-pressure and high-temperature environments. With our advanced manufacturing techniques and stringent quality control, Al Shakru Sheets and Plates reliably provides products that meet international standards, building a strong reputation across sectors such as power generation, petrochemicals, and heavy engineering throughout UAE and beyond.
When it comes to Boiler Quality Sheets and Plates , they’re usually made from carbon steel, containing defined proportions of carbon (0.20–0.25%) , manganese (0.80–1.60%) , silicon (0.15–0.35%) , together with trace elements like sulfur and phosphorus. These materials deliver a tensile strength ranging from 410–550 MPa , as well as outstanding weldability , toughness , and crack resistance under high temperature and pressure. Such mechanical properties make them ideal for use in pressure vessels, boilers, and heat exchangers, where durability and reliability are essential for safety and longevity.
| Thickness | 3 mm to 200 mm |
| Width | 1250mm to 4000mm |
| Length | Up to 20,000 mm |
| Certification | DUAL CERTIFICATION [SA 516 GR. 60 / 70] TRIPLE CERTIFICATION. [SA 516 GR. 60 / 65 / 70] IBR AND NON IBR |
| Carbon | Manganese | Sulpher maximum | Phosphorus max | Silicon maximum | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 100 MM < t ≤ 200 MM | t < 200 MM | 12.5 MM < t =50 MM | t < 12.5 MM | 50 MM < t ≤ 100 MM | t 12s.5 MM | t < 12.5 MM | ||||
| A516 Gr 55 | 0.24 | 0.26 | 0.2 | 0.18 | 0.22 | 0.55-0.98 | 06-09 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Gr 60 | 0.27 | 0.27 | 0.23 | 0.21 | 0.25 | 0.85-1.2 | 06-09 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Gr 65 | 0.29 | 0.29 | 0.26 | 0.24 | 0.28 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| A516 Gr 70 | 0.31 | 0.31 | 0.28 | 0.27 | 0.3 | 0.85-1.2 | 0.85-1.2 | 0.035 | 0.035 | 0.15-0.4 |
| Tensile strength (MPa) | Yield strength (MPa) | Tensile strength (ksi) | Elongation in 200 MM(%) | Yield strength (ksi) | Elongation in 50 MM(%) | |
|---|---|---|---|---|---|---|
| A516 Gr 55 | 55-75 | 380-515 | 30 | 205 | 23 | 27 |
| A516 Gr 60 | 60-80 | 415-550 | 32 | 220 | 21 | 25 |
| A516 Gr 65 | 65-85 | 450-585 | 35 | 240 | 19 | 23 |
| A516 Gr 70 | 70-90 | 485-620 | 38 | 260 | 17 | 21 |
| Material # | DIN 17155 | EN 10028-2 | ASTM | BS 1501 | JIS G3115 |
| 1.0425 | HII | P265GH | A 414 Gr. E / A 516 Gr. 60 | 161 Gr. 400 / 164 Gr. 400 / 224 Gr. 400 | |
| 1.0345 | HI | P235GH | A 285 Gr. C-A 414 Gr. C / A 516 Gr. 55 | 161 Gr. 360 / 164 Gr. 360 | SPV 24 |
| 1.0473 | 19 Mn 6 | P355GH | A 414 Gr. G | SPV 36 | |
| 1.7383 | 11CrMo9-10 | ||||
| 1.0481 | 17 Mn 4 | P295GH | A 414 Gr. F / A 516 Gr. 65 | 224 Gr. 490 | SPV 32 |
| 1.7335 | 13CrMo 4 4 | 13CrMo4-5 | A 387 Gr. 12 | 620 Gr. 27 | |
| 1.5415 | 15 Mo 3 | 16Mo3 | A 204 Gr. B | 1503 – 243 B | |
| 1.738 | 10CrMo 9 10 | 10CrMo9-10 | A 387 Gr. 22 | 622 Gr. 31 |
We provide items supplied with both mill test certificates and third-party test certificates, guaranteeing the highest levels of quality and compliance.
Boiler Quality Sheets and Plates provide numerous benefits, such as outstanding strength and durability, which make them well-suited for high-pressure and high-temperature applications. They exhibit high resistance to thermal fatigue, corrosion, and oxidation, guaranteeing an extended service life. These materials are purpose-built for use in boilers, pressure vessels, and heat exchangers, where safety and reliability are of the utmost importance. They further offer superior weldability, formability, and ease of fabrication, rendering them versatile and reliable for critical applications.
| Size (Length x width) | Thickness mm | Size (Length x width) | Thickness mm | Size (Length x width) | Thickness mm |
|---|---|---|---|---|---|
| 2055 x 12100 | 8 | ||||
| 2500 x 12000 | 3000 x 12000 | ||||
| 2055 x 12000 | 20 | 2500 x 12000 | 3000 x 6000 | 60 | |
| 3000 x 12000 | 3460 x 14000 | 3000 x 6000 | 65 | ||
| 3460 x 14000 | |||||
| 2055 x 12100 | 18 | 2055 x 12100 | 6 | 2055 x 8000 | 50 |
| 3000 x 12000 | 3000 x 12000 | ||||
| 2500 x 12000 | 2500 x 12000 | 3000 x 9000 | |||
| 3460 x 14000 | 3000 x 6000 | 55 | |||
| 4000 x 12000 | 2055 x 12100 | 12.5 | 3000 x 4000 | 90 | |
| 2500 x 12000 | 3460 x 14000 | ||||
| 2055 x 12000 | 25 | 3000 x 12000 | 3000 x 4000 | 100 | |
| 2500 x 12000 | |||||
| 3460 x 14000 | 4000 x 12000 | ||||
| 4000 x 12000 | |||||
| 4000 x 12000 | 2055 x 12100 | 10 | 3000 x 6000 | 70 | |
| 3000 x 12000 | 4000 x 12000 | 3000 x 6000 | 80 | ||
| 2055 x 12100 | 22 | 3000 x 12000 | 3000 x 6000 | 75 | |
| 2500 x 12000 | |||||
| 2500 x 12000 | 3460 x 14000 | ||||
| 3460 x 14000 | |||||
| 2500 x 12000 | 2055 x 12100 | 15 | |||
| 2500 x 10000 | 4000 x 12000 | ||||
| 3000 x 12000 | |||||
| 3000 x 10000 | 2500 x 12000 | ||||
| 2055 x 12000 | 40 | 3460 x 14000 | |||
| 3000 x 10000 | |||||
| 2055 x 12100 | 13 | ||||
| 4000 x 12000 | 3460 x 14000 | ||||
| 2500 x 12000 | 3000 x 12000 | ||||
| 2055 x 12000 | 30 | 2500 x 12000 | |||
| 4000 x 12000 | |||||
| 2055 x 12000 | 35 | ||||
| 2055 x 12100 | 16 | ||||
| 4000 x 12000 | |||||
| 2500 x 10000 | 3000 x 12000 | ||||
| 2055 x 8000 | 45 | 2500 x 12000 | |||
| 3000 x 9000 | 3460 x 14000 |
You’ll find Boiler Quality Sheets and Plates commonly deployed across power plants, refineries, thermal stations, and chemical industries . They’re well-suited for building boilers, heat exchangers, pressure vessels, economizers, and storage tanks that must operate under extreme conditions. The material’s capacity to withstand high pressure and elevated temperatures without deforming or corroding makes it indispensable in steam generation systems and industrial process equipment . What’s more, BQ Plates are also employed in structural fabrication , marine engineering , and the energy sector , where safety, strength, and performance are truly vital.
