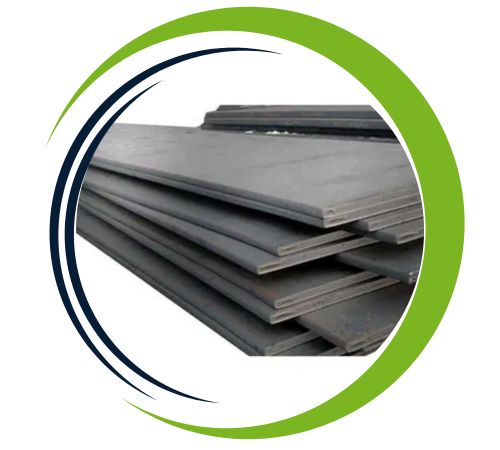

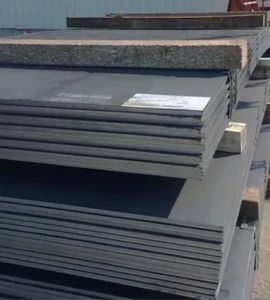

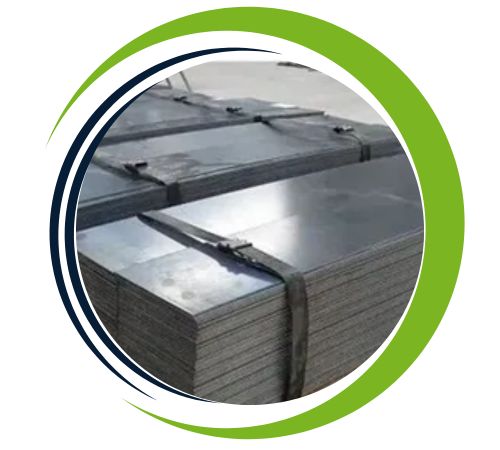

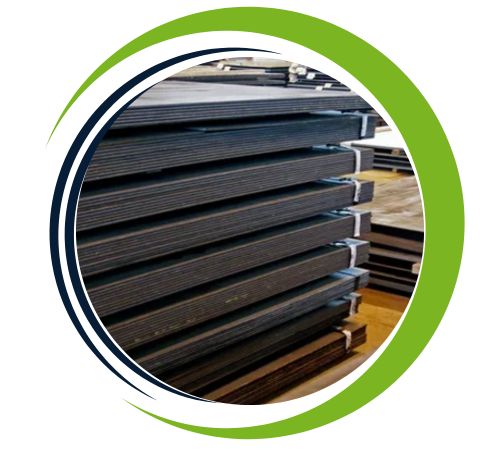

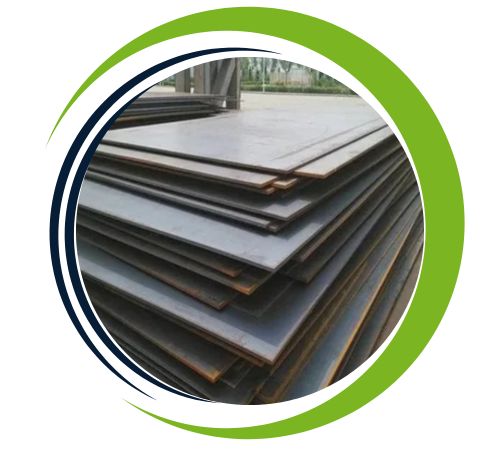

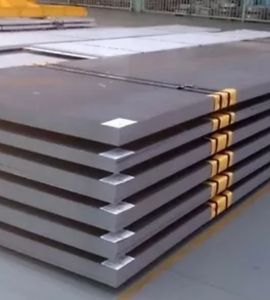

Al Shakru Sheets and Plates, a well-regarded manufacturer and supplier based in Dubai, UAE, has established a strong reputation for delivering high-quality steel products engineered to satisfy industrial requirements. Among their notable products is the SA516 Gr 60-70 Dual TC Boiler Sheet and Plate, recognized for its outstanding performance and dependability. These plates are produced to comply with the demanding standards of pressure vessel and boiler manufacturing, offering impressive weldability, toughness, and resistance to high-temperature environments. By combining advanced manufacturing methods with rigorous quality control, Al Shakru Sheets and Plates guarantees that every plate not only satisfies international standards but also exceeds customer expectations across a wide range of industries.
The SA516 Gr 60-70 Dual TC Boiler Sheet and Plate consists mainly of carbon, manganese, phosphorus, sulfur, and silicon, together with precisely controlled micro-alloying elements that enhance strength and toughness. These plates deliver remarkable tensile strength from 415 to 585 MPa, with yield strength ranging from 260 to 485 MPa, based on the particular grade. They additionally offer excellent notch toughness and elongation, keeping them durable when exposed to high pressure and temperature. The dual test certification (Gr 60 & 70) ensures reliable mechanical performance, which makes them ideal for demanding boiler and pressure vessel uses.
Grade : ASME SA 516 GR.60 Steel Plates for Boilers and Pressure Vessels
Width : 1500mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| Grades | C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 60 | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| 70N | 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Grades | Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 60 | 485-620 (70-90) | 260 (38) | 17 | 21 |
| 70N | 485-620 (70-90) | 260 (38) | 17 | 21 |
| Grades | British Standard | European Norm | ASTM/ASME | DIN |
| 60 | BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
| 70N | BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
We offer products supplied with both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
SA516 Gr 60-70 Dual TC Boiler Sheets and Plates deliver outstanding strength, durability, and reliability, which makes them well-suited for high-pressure and high-temperature applications. These plates offer excellent weldability and toughness, even under low-temperature conditions, guaranteeing structural integrity in critical settings. They demonstrate superior resistance to corrosion and cracking, improving longevity and safety in boiler and pressure vessel operations. Dual test certifications confirm compliance with strict industry standards, providing versatility across a range of industries including oil and gas, power generation, and chemical processing. Their cost-effectiveness adds even more to their appeal.
High-pressure and high-temperature applications across many industries make extensive use of the SA516 Gr 60-70 Dual TC Boiler Sheet and Plate. Thanks to its impressive mechanical strength and weldability, it is a superb option for building boilers, heat exchangers, storage tanks, and pressure vessels within the oil, gas, and petrochemical industries. In addition, it is used in power plants, refineries, and marine engineering to fabricate components that withstand harsh operating conditions. The dual certification offers versatility in design and material choice, guaranteeing dependable performance and an extended service life across both mild and demanding thermal and pressure settings.
