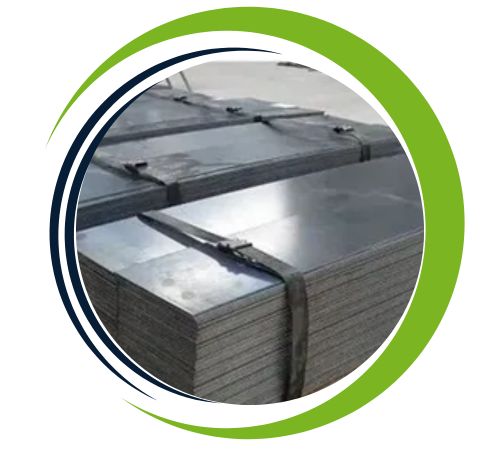

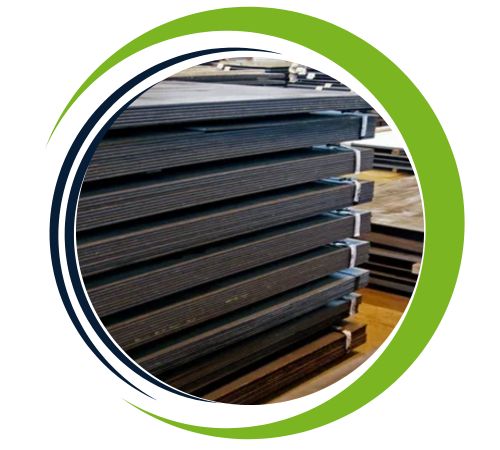

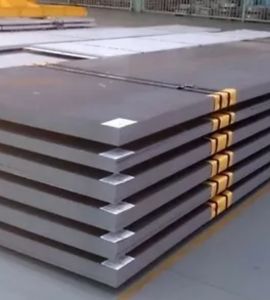

Al Shakru Sheets and Plates, a highly regarded manufacturer and supplier based in Dubai, UAE, focuses on premium SA 285 Grade C Boiler Sheets and Plates that are designed for excellent performance in pressure vessel and boiler applications. These carbon steel plates are praised for their exceptional weldability, durability, and strength, even under moderate temperature and pressure conditions. By complying with international standards, Al Shakru Sheets and Plates ensures precise engineering, strict quality control, and timely delivery. Their dedication to excellence has made them a trusted name in supplying reliable and affordable steel materials across UAE’s industrial and fabrication sectors.
The SA 285 Grade C Boiler Sheets and Plates consist mainly of carbon (up to 0.28%), manganese (0.90–1.30%), phosphorus (0.035%), sulfur (0.035%), and silicon (0.13–0.45%). These plates offer a minimum tensile strength between 515 and 655 MPa along with a yield strength of 220 MPa, delivering remarkable strength and formability. Thanks to their solid ductility, impact resistance, and weldability, they are ideal for low- to moderate-pressure service applications requiring durability and reliable performance.
Grade : Pressure Vessel Plates, Carbon Steel, Low- and Intermediate-Tensile Strength – SA285 Gr.C
Width : 1000mm-4500mm
Thickness : 5mm-300mm
Length : 3000mm-18000mm
Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| C | Mn | P | S | Si | Cu | Al | Cr | Ni | Mo | Nb | Ti |
| 0.16 | 0.4/1.2 | 0.03 | 0.03 | 0.35 | 0.3 | 0.02 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 |
| Tensile strength | Yield strength, min | Elongation in under [50mm] |
| 380-515 MPa | 205 MPa | 27% min |
| ASTM/ASME | ME British Standard | European Norm | Japan | Spain |
| A/SA285 – Grade C | 161 Gr.360/164 Gr.360 | P235GH | SPV 24 | A 37 RCI |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
SA285 Grade C Boiler Sheet and Plate deliver outstanding weldability, which makes them well suited for pressure vessel and boiler manufacturing. They offer solid strength and toughness, guaranteeing durability under elevated pressure and temperatures. The material is likewise corrosion-resistant, boosting its lifespan in industrial applications. Its low carbon content allows for easy forming and machining. SA285 Grade C is widely employed to produce tanks, heat exchangers, and other pressure-related equipment, delivering cost-effectiveness without sacrificing performance or reliability.
These SA 285 Grade C Boiler Sheets and Plates are widely applied across industries that demand moderate strength paired with high dependability under pressure. They work perfectly for building boilers, storage tanks, pressure vessels, and heat exchangers. Frequently used in oil refineries, power plants, and petrochemical industries, these plates provide outstanding performance in environments where moderate resistance to pressure and temperature is essential. Thanks to their superb weldability and formability, they suit fabrication and construction projects that value safety, efficiency, and durability.
