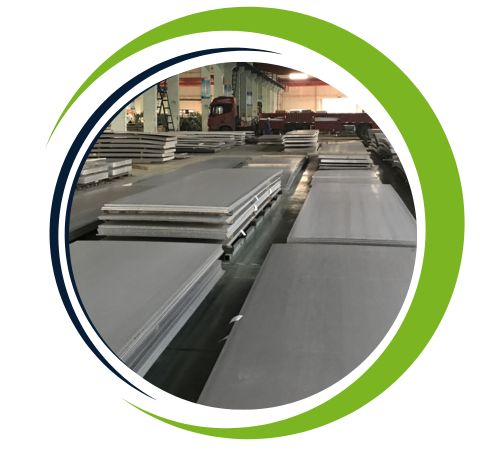

Al Shakru Sheets and Plates, a well-regarded manufacturer and supplier based in Dubai, UAE, is proud to provide premium Stainless Steel 440C Sheets and Plates . These products are known for their exceptional hardness, resistance to wear, and capacity to endure corrosion. Expertly engineered for demanding industrial, tooling, and precision engineering applications, these sheets and plates deliver reliable performance even in moderately corrosive settings and under high-stress conditions. Conforming to international standards, Al Shakru Sheets and Plates’ Stainless Steel 440C Sheets and Plates feature excellent dimensional accuracy, mechanical strength, and toughness. Their notable resistance to abrasion and oxidation makes them a preferred option for applications requiring precision, durability, and enduring structural integrity in machinery, tooling, and diverse industrial components.
Stainless Steel 440C Sheets and Plates are made up mostly of iron, containing roughly 16–18% chromium and 0.95–1.20% carbon, together with minor quantities of manganese, silicon, and molybdenum. Recognized for its remarkable hardness, this high-carbon martensitic stainless steel delivers a tensile strength that spans 760 to 1100 MPa and a yield strength in the range of 450 to 750 MPa, as well as outstanding wear resistance. Additionally, the material provides solid corrosion resistance, toughness, and dimensional stability, which makes it an ideal choice for industrial uses demanding high precision, high strength, and high wear tolerance.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 440C | min. max. | 0.95 1.20 | – 1 | – 1 | – 0.04 | – 0.030 | 16.00 18.00 | – 0.75 | – | – |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
| Annealed* | 758 | 448 | 14 | 269HB max# | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
| Grade | WERKSTOFF NR. | UNS |
| SS 440C | 1.4125 | S44004 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (mm/m/°C) | Thermal Conductivity(W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nW.m) | |||
| 0-100°C | 0-200°C | 0-600°C | at 100°C | at 500°C | |||||
| 440 C | 7650 | 200 | 10.1 | 10.3 | 11.7 | 24.2 | – | 460 | 600 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Stainless Steel 440C Sheet and Platesoffers numerous benefits in paper and plate form. It is recognized for its high durability, which makes it well suited for applications that demand damage resistance such as nails, bearings and valves. It has outstanding corrosion resistance, particularly in water and chemical environments. 440C also delivers outstanding strength and stability, retaining its mechanical properties even at elevated temperatures. In addition, it is readily machined and manufactured, making it a standard approach for precision manufacturing in industries including automotive, aerospace and medical.
Across a range of industries—aerospace, automotive, marine, and industrial machinery—you’ll see Stainless Steel 440C Sheets and Plates put to use. They work especially well for making cutting tools, gears, shafts, bearings, valves, and other parts subjected to heavy wear. Within tooling and engineering applications, these sheets and plates provide lasting performance in situations where hardness, mechanical strength, and corrosion resistance matter most. This combination of precision, durability, and wear resistance makes Al Shakru Sheets and Plates’ Stainless Steel 440C Sheets and Plates a perfect choice for structural, industrial, and high-performance engineering uses that call for dependable, long-lasting, and sturdy solutions.
