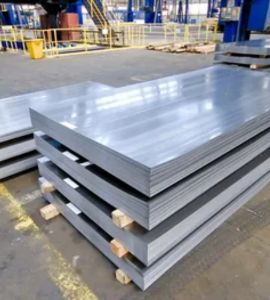

Al Shakru Sheets and Plates, a dependable manufacturer and supplier based in Dubai, UAE, focuses on premium Stainless Steel 410 Sheets and Plates renowned for their remarkable corrosion resistance, moderate hardness, and strength at elevated temperatures. Engineered to satisfy the requirements of industrial, structural, and engineering uses, these sheets and plates provide reliable performance even in mildly corrosive and high-temperature environments. Manufactured to comply with international standards, Al Shakru Sheets and Plates’ Stainless Steel 410 Sheets and Plates ensure outstanding dimensional precision, weldability, and mechanical stability. Their distinctive combination of toughness, wear resistance, and oxidation protection makes them ideal for machinery components, structural assemblies, and tooling applications that demand durability, strength, and dependable operation.
Stainless Steel 410 Sheets and Plates consist mainly of iron, with roughly 11–13% chromium plus small quantities of carbon, manganese, and silicon. This martensitic stainless steel provides moderate resistance to corrosion, a tensile strength in the 450–700 MPa range, and a yield strength of 250–450 MPa. Featuring good hardness, toughness, and dimensional stability, it is a strong fit for structural, industrial, and high-wear uses that call for both durability and dependability.
| Standard | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

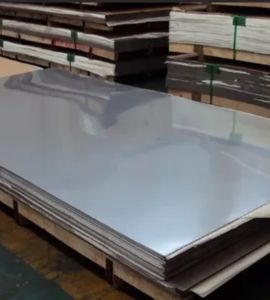

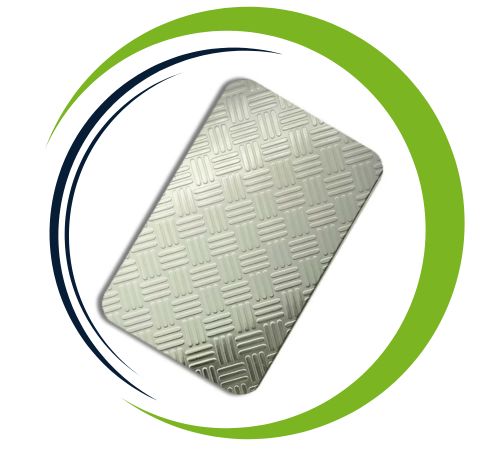

| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc |

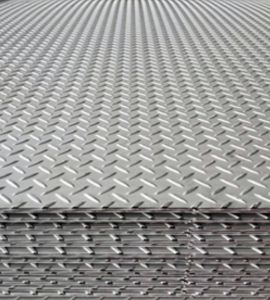

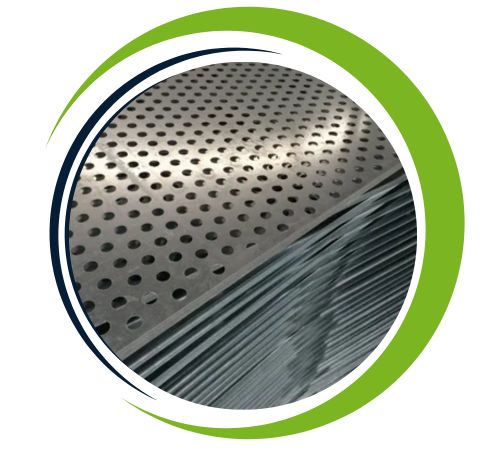

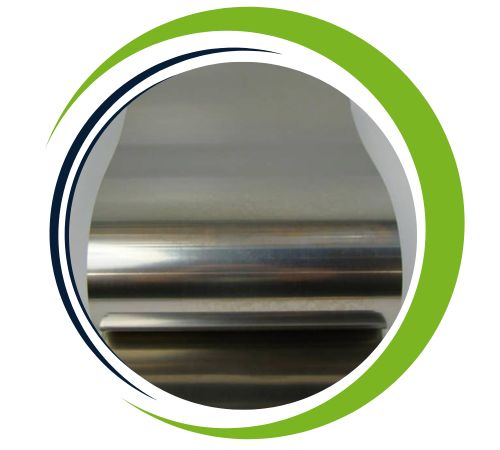

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | Cr | Mn | Si | Ni | C | P | S | Fe |
| SS 410 | 11.50 – 13.50 | 0.0 – 1.50 | 0.0 – 1.00 | 0.0 – 0.75 | 0.08 – 0.15 | 0.0 – 0.04 | 0.0 – 0.02 | Balance |
| Tensile Strength Ksi (Mpa) | 0.2% Offset Yield Strength Ksi (Mpa) | Elongation, % in 2″ (51 mm) | Hardening Response HRC | HRB |
| 65 (450) – 74 (510) | 30 (205) – 42 (290) | 20 – 34 | 38-45 | 82-96 |
| Grade | WERKSTOFF NR. | UNS | AISI | BS | SIS | EN | JIS | AFNOR |
| SS 410 | 1.4006 | S41000 | 410 | 410S21 | 2302 | X12Cr13 | 410 | Z10C13/Z13C13 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 410 | 7750 | 200 | 9.9 | 11.4 | 11.6 | 24.9 | 28.7 | 460 | 570 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Stainless steel 410 sheets and platesoffer a range of advantages such as outstanding hardness and corrosion resistance, making them well suited for durable components like cutlery, fasteners and valves particularly in mildly corrosive settings moderate corrosion resistance owing to chromium content. Their considerable strength and durability allow them to be applied in buildings and mechanical components. Furthermore, they can be heat treated, boosting the mechanical properties. Straightforward and low-cost devices add to their appeal, making them an excellent option for industries such as automotive, aerospace and construction.
You’ll commonly see Stainless Steel 410 Sheets and Plates put to use across aerospace, automotive, marine, and industrial machinery sectors. They’re ideal for making shafts, gears, fasteners, valves, and structural supports. Within industrial and tooling settings, these sheets and plates hold up dependably under moderate corrosive and high-stress conditions. Owing to their corrosion resistance, mechanical strength, and wear resistance, Stainless Steel 410 Sheets and Plates from Al Shakru Sheets and Plates are a preferred pick for high-performance, structural, and industrial applications that call for materials built to endure.
