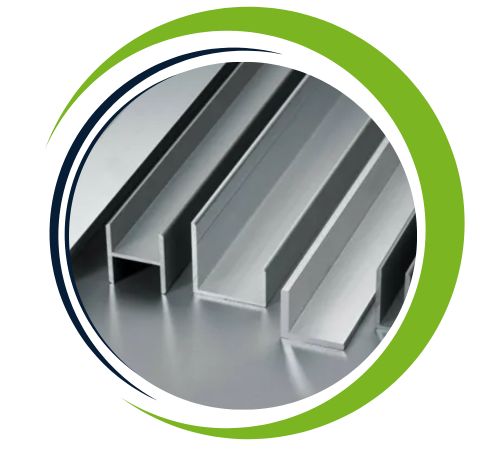

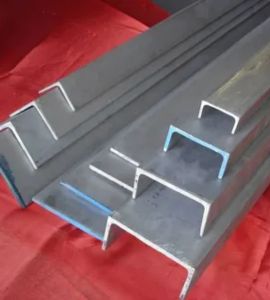

Al Shakru Sheets and Plates stands out as a premier manufacturer and supplier based in Dubai, UAE, specializing in high-quality Inconel 718 Angles . Renowned for their exceptional strength, corrosion resistance, and stability even under high temperatures, these angles are ideally suited for demanding aerospace, marine, and industrial applications. Al Shakru Sheets and Plates places great emphasis on manufacturing precision, strict quality control, and adherence to international standards, ensuring their components can be trusted in extreme conditions. Offering excellent weldability, fatigue resistance, and enduring durability, Inconel 718 Angles from Al Shakru Sheets and Plates provide superior performance in structural, high-temperature, and corrosive environments, ensuring safety, reliability, and minimal maintenance.
Specifications :ASTM B637 / ASME SB637
Angle Size Range :20 x 20 mm up to 100 x 100 mm
Angles Thickness :3 to 12 mm (varies with size)
Channel Size Range :Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness :5 to 6 mm (varies with size)
Length :3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Lengths
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 718 | 2.4668 | N07718 |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on supplying superior products, we serve a broad array of industries, offering dependable solutions for varied applications. Our vast inventory includes Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Inconel 718 angleoffers numerous benefits, making it widely desired across demanding industries. Its remarkable high-temperature strength along with resistance to oxidation and corrosion make it perfectly suited for aerospace, nuclear, and chemical processing applications. The alloy retains its mechanical properties even under extreme conditions, featuring excellent fatigue and thermal-fatigue resistance. Inconel 718 also demonstrates exceptional weldability and formability, enabling flexible manufacturing processes. Its capacity to endure high-stress situations and preserve structural integrity at elevated temperatures makes it a dependable material for critical components.
Yes,we provide custom dimensions for Inconel 718 Angle to suit particular project requirements. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all your needs. For further information, reach out to us at sales@alshakruplates.ae.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Angle Bar (kilogram/meter) | Inconel 718 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Inconel 718 Angles are widely applied across aerospace structures, gas turbines, marine engineering, nuclear reactors, chemical processing equipment, and high-performance industrial machinery . They are ideally suited for building turbine frames, structural supports, fasteners, and load-bearing components that call for high strength and corrosion resistance. Additionally, these angles serve in pressure vessels, exhaust systems, and heat-resistant structural applications , where longevity and mechanical integrity are essential. The combination of high strength, oxidation resistance, and thermal stability guarantees that Inconel 718 Angles perform outstandingly even under the toughest conditions.
