Al Shakru Sheets and Plates, a leading manufacturer and supplier based in Dubai, UAE, is proud to provide high-quality Inconel Circles engineered for outstanding strength, corrosion resistance, and performance under high temperatures. Made with precision and following stringent quality standards, these circles feature impressive dimensional accuracy, a smooth surface finish, and reliable mechanical properties. They’re ideal for demanding industries such as aerospace, chemical processing, power generation, and marine engineering, where durability and lasting performance in extreme conditions are essential. Thanks to their notable toughness, oxidation resistance, and thermal stability, these Inconel Circles are indispensable for critical applications that call for dependable structural integrity in harsh environments.
Inconel Circles are composed primarily of nickel (about 72%), chromium (roughly 14–17%), and iron (around 6–10%) , together with minor quantities of molybdenum, niobium, and titanium to enhance their resistance to corrosion and heat. They display tensile strength between 690 and 980 MPa , outstanding creep resistance, and solid ductility even at high temperatures. These circles retain their mechanical integrity and dimensional stability when subjected to thermal cycling and corrosive environments. Their combination of high strength, durability, and scaling resistance makes Inconel Circles ideal for applications where performance under extreme conditions is essential.
Specifications: ASTM B168 / ASME SB168
Dimensions: ASTM, ASME and API
Thickness: 1 mm To 100 mm
Diameter: Upto 2000 mm
Circle Diameter: 3″ DIA up to 38″ DIA 1500 lbs max
Grade: Inconel UNS (N06600, N06601, N06625, N07718), DIN (2.4816, 2.4851, 2.4856, 2.4668)

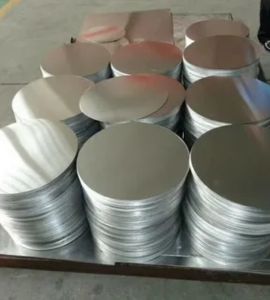

Type: Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | N600DNB4M | NiCr22Mo9Nb |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates based in Dubai, UAE, is a premier supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to satisfy our customers’ specific needs. With an emphasis on delivering superior products, we serve a broad array of industries, offering dependable solutions for varied applications. Our vast inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Inconel circlesoffer numerous benefits, making them essential in demanding industries. They deliver outstanding resistance to corrosion and oxidation, even under extreme temperatures and severe chemical conditions. With high tensile and yield strength, they preserve structural integrity under heavy stress and thermal cycling. Their superior fatigue and creep-rupture resistance guarantee long-term durability, even at temperatures above 800°C. Moreover, Inconel circles demonstrate excellent weldability and keep their mechanical properties after fabrication. These qualities make them well-suited for aerospace, marine, and chemical processing industries, where reliability and performance are essential.
Yes,we provide custom sizes for Inconel Circle to fit particular project requirements. The team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all your needs. To learn more, reach out to us at sales@alshakruplates.ae.
Inconel Circles are used across industries requiring exceptional thermal, corrosion, and mechanical performance. They commonly appear in turbine components, aerospace parts, chemical processing equipment, marine engineering applications, and high-temperature fasteners . Within the power generation and petrochemical sectors, they serve as heat exchanger discs, valve components, and high-performance structural parts . Because they retain strength, reliability, and dimensional stability under harsh conditions, they ensure lasting performance and reduced maintenance.
