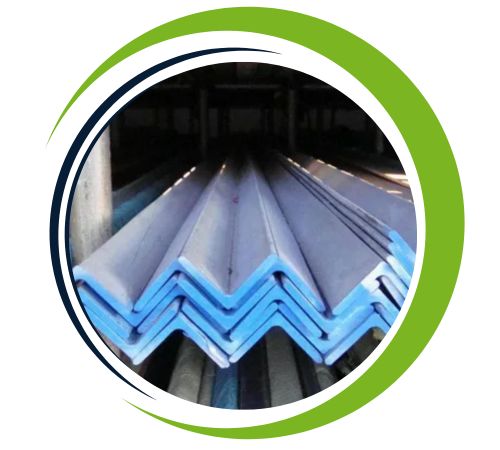

Al Shakru Sheets and Plates is a premier manufacturer and supplier based in Dubai, UAE, specializing in premium-grade Inconel 601 Angles . Celebrated for their accuracy, dependability, and advanced manufacturing expertise, this company produces materials built to perform in the most demanding industrial environments. Their Inconel 601 Angles deliver exceptional resistance to elevated temperatures, oxidation, and corrosive conditions, making them ideal for lasting applications. Serving industries such as aerospace, chemical processing, power generation, and marine, Al Shakru Sheets and Plates ensures that each product delivers reliable strength, durability, and structural integrity, offering clients dependable solutions for essential and high-performance requirements.
Inconel 601 Angles are primarily made up of nickel, chromium, and iron, with aluminum added to enhance resistance to oxidation and corrosion. This alloy demonstrates outstanding mechanical characteristics, including high tensile and yield strength, superb creep resistance, and thermal stability at high temperatures. Inconel 601 preserves its structural integrity even when subjected to cyclic heating and demanding environmental conditions. It also offers excellent weldability and formability, which makes it perfect for projects demanding complex fabrication while delivering durable performance and resistance to scaling, carburization, and other forms of high-temperature degradation.
Specifications :ASTM B166 / ASME SB166
Angle Size Range :20 x 20 mm to 100 x 100 mm
Angles Thickness :3 to 12 mm (varies with size)
Channel Size Range :Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness :5 to 6 mm (varies with size)
Length :3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Lengths
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Grade | C | Mn | Si | Cu | S | Fe | Mo | Ni | Cr |
| Inconel 601 | 0.10 max | 1 max | 0.50 max | 1 max | 0.15 min | balance | – | 58.0-63.0 | 21.0–25.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on delivering high-quality products, we serve a broad spectrum of industries, offering dependable solutions for varied applications. Our vast inventory includes Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Inconel 601 Angleprovides many benefits, making it a favored option for challenging applications. Its outstanding oxidation resistance up to 1204°C (2200°F) guarantees longevity in high-temperature settings. The alloy’s excellent corrosion resistance, particularly against sulfur compounds and carburizing atmospheres, boosts its effectiveness in chemical and thermal processes. Its mechanical strength and structural stability under severe conditions reduce deformation and cracking. Inconel 601 is additionally simple to fabricate and weld, offering flexibility for numerous industries, including aerospace, power generation, and petrochemical. Its durability and dependability cut maintenance costs considerably.
Yes,we provide custom sizes for Inconel 601 Angle to suit particular project needs. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all your requirements. For more information, reach out to us at sales@alshakruplates.ae.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel 601 Angle Bar (kilogram/meter) | Inconel 601 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel 601 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Inconel 601 Angles are widely applied across industries where elevated strength, thermal resistance, and corrosion defense are essential. Within the aerospace and automotive sectors, they serve in exhaust systems, furnace parts, and high-temperature fixtures. Across chemical and petrochemical plants, they function in reactor linings, process heaters, and piping supports. Facilities for power generation rely on Inconel 601 Angles for boiler parts, gas turbines, and heat exchangers. Because they can withstand thermal cycling, oxidation, and corrosive settings, they are ideally suited for marine engineering and industrial furnace uses.
