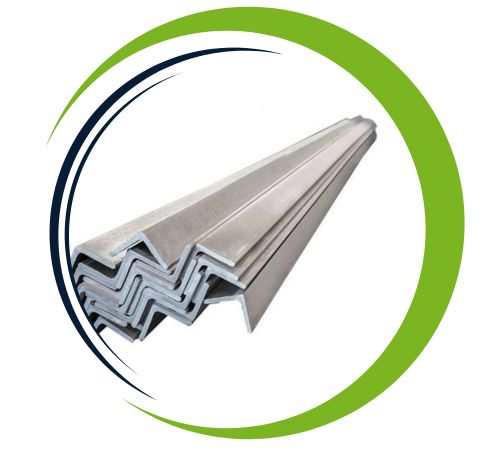

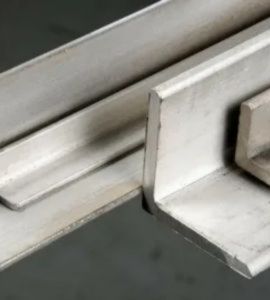

Al Shakru Sheets and Plates, based in Dubai, UAE, distinguishes itself as a premier manufacturer and supplier of high-quality Titanium Grade 2 Angles . Well-known for their precision engineering and stringent quality benchmarks, this company produces angles that feature notable corrosion resistance, outstanding strength, and lightweight properties. Employing advanced techniques, these Titanium Grade 2 Angles provide superb dimensional accuracy and reliable performance across a wide range of applications. Serving industries such as aerospace, chemical processing, marine, and medical, Al Shakru Sheets and Plates supplies products designed to satisfy demanding operational requirements. These angles ensure enduring durability, structural integrity, and trustworthy performance even in harsh conditions.
Al Shakru Sheets and Plates’ Titanium Grade 2 Angles are crafted from commercially pure titanium featuring low oxygen levels, delivering exceptional resistance to corrosion along with a favorable strength-to-weight ratio. From a mechanical standpoint, they demonstrate impressive tensile strength, ductility, and resistance to fatigue while staying lightweight and simple to form. In addition, these angles offer excellent weldability and structural steadiness, which makes them ideal for accurate fabrication into parts used in critical applications. This combination of mechanical strength, chemical stability, and dimensional precision ensures that Titanium Grade 2 Angles deliver dependable performance under harsh environmental and industrial conditions, establishing them as a preferred option for demanding engineering and structural projects.
Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, etc
Size : Grade 2 Titanium angle bar dimensions : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm
Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (varying with size)
Angle Length: Up To 6 Meters In Length
Processing: Bar Cutting
Application: Paper Industry, Architecture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More

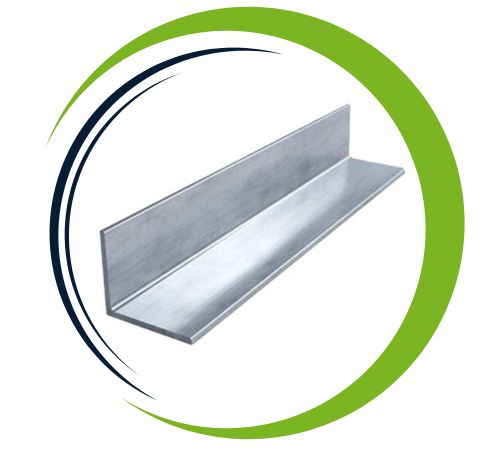

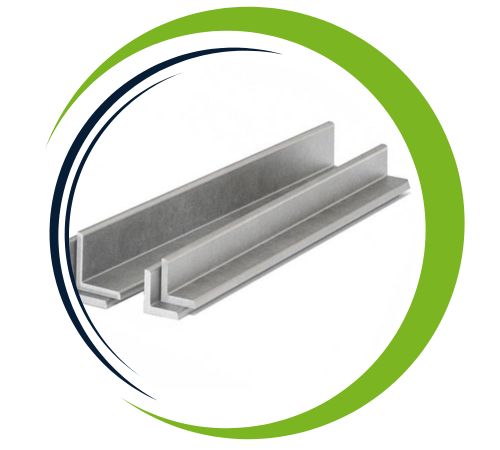

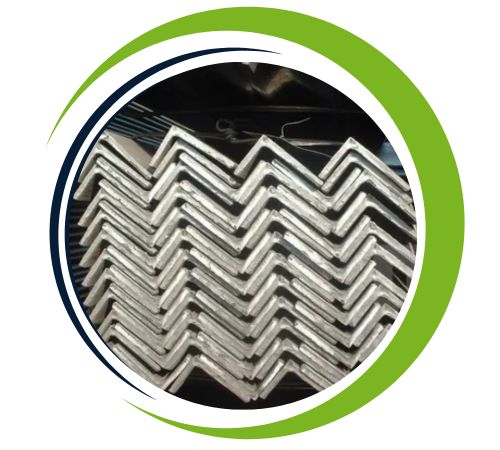

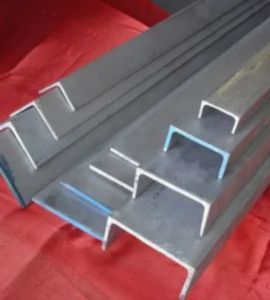

Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle
Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 2 | 3.7035 | R50400 |
| Element | C | Mn | N | H | Ti | Fe | O |
| Titanium Gr2 | 0.1 max | 2.00 max | 0.03 max | 0.015 max | 99.2 min | 0.3 max | 0.25 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Titanium Gr2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % | – |
We deliver products supplied with both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates based in Dubai, UAE, is a top supplier and stockist of premium metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on supplying superior products, we serve a broad range of industries, offering dependable solutions for varied applications. Our large inventory includes Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Titanium Grade 2 angleprovides several important benefits, making it well-suited for demanding applications. Its outstanding corrosion resistance, especially in marine and chemical environments, guarantees durable performance. Thanks to a high strength-to-weight ratio, Ti Gr 2 delivers durability without adding unnecessary weight, making it ideal for aerospace and structural applications. Its exceptional weldability and formability enable easy fabrication into complex shapes. Furthermore, Titanium Grade 2 shows good fatigue resistance and can operate effectively in temperatures up to 400°C, providing reliability and versatility across a wide range of industries.
| Sizes (all Dimensions in milimeter) | Approx Weight Titanium Gr.2 Angle Bar (kilogram/meter) | Titanium Gr 2 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Titanium Grade 2 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes,we provide custom sizes for Titanium Grade 2 Angle to fit particular project needs. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all your requirements. For further information, reach out to us at sales@alshakruplates.ae.
Titanium Grade 2 Angles are extensively used throughout numerous industries owing to their corrosion resistance, strength, and versatility. Within aerospace, they serve as structural supports, frameworks, and lightweight components. The chemical and petrochemical industries rely on them for corrosion-resistant structures, piping supports, and equipment frameworks. For marine uses, Titanium Grade 2 Angles are applied in shipbuilding and offshore structures, whereas the medical field uses them in implants, prosthetics, and surgical equipment.
