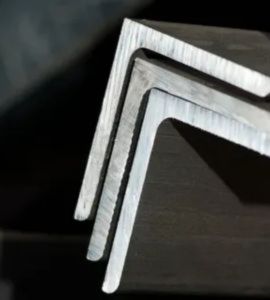

Al Shakru Sheets and Plates, a highly regarded manufacturer and supplier based in Dubai, UAE, focuses on premium Titanium Grade 5 Angles engineered for outstanding strength, corrosion resistance, and all-around performance. This titanium alloy, referred to as Grade 5, is the most widely used because of its lightweight character and remarkable mechanical properties, making it ideal for demanding industrial environments. Through a dedication to precise engineering and stringent quality control, Al Shakru Sheets and Plates delivers products that satisfy international standards. Their Titanium Grade 5 Angles are widely applied across aerospace, marine, chemical, and industrial sectors, providing unrivaled reliability and durability for critical structural and engineering applications.
Composed of roughly 90% titanium, 6% aluminum, and 4% vanadium, these Titanium Grade 5 Angles form an alloy that achieves an ideal equilibrium of strength, ductility, and corrosion resistance. Thanks to this distinctive makeup, they deliver excellent tensile strength, high fatigue resistance, and superb performance across both high and low temperature conditions. With an impressive strength-to-weight ratio, good weldability, and remarkable resistance to oxidation and chemical attacks, the material serves as a preferred option for high-stress and high-temperature environments.
Dimensions: ASME, ASTM, EN, BS, GB, DIN, JIS, and more
Size : Angle Size : 3/4″ THRU 8″
Channel Size : Base: 80 to 150 mm Side: 40 to 75 mm
Thickness: Angle Thickness: 1/8″ thru 5/8″
Channel Thickness : Base: 5 to 6 mm (varies by size)
Angle Length: Up to 6 Meters in Length
Processing: Bar Cutting
Application: Paper Industry, Architecture, Construction, Kitchen Equipment, Pharma, Engineering Industries And Many More

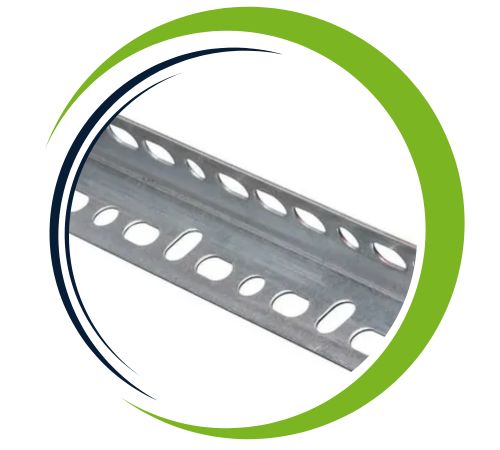

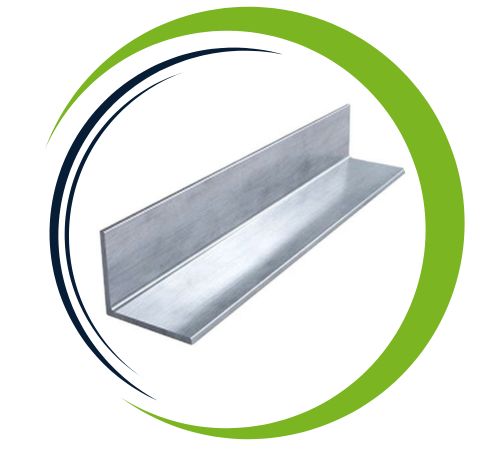

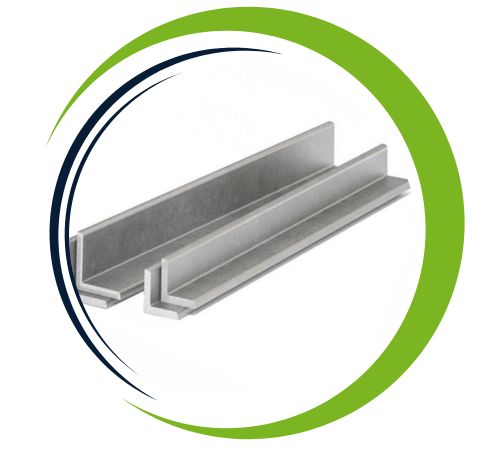

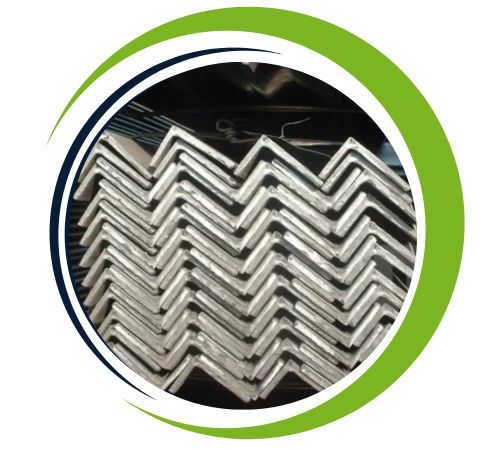

Angle Types: Angles, Angle Bars, Equal Angle, Unequal Angle, L Shape Angles, Equal Leg Angle, Unequal Leg Angle, T Shaped Angle
Channel Types: Channel, Channel Bars, C-channel, U-Channel, Strut Channels, Miscellaneous Channel, MC Channels, Unistrut Channels
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | R56400 |
| Element | C | V | N | Al | Ti | Fe | O |
| Titanium Gr.5 | – | 4 min | – | 6 min | 90 min | 0.25 max | 0.2 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Titanium Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % | – |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates based in Dubai, UAE, is a top supplier and stockist of premium metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fit our customers specific needs. With an emphasis on supplying superior products, we serve a broad spectrum of industries, delivering dependable solutions for varied applications. Our large inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Titanium Grade 5Ti-6Al-4V Angle delivers many benefits, such as remarkable strength, low weight, and outstanding corrosion resistance, which makes it perfect for demanding environments. It shows strong resistance to oxidation, guaranteeing durability even under severe conditions like elevated temperatures and marine settings. Titanium Gr 5 Angle additionally offers excellent fatigue resistance and can endure intense stress without deforming. Its biocompatibility renders it appropriate for medical uses, while its formability enables varied structural applications. These characteristics make it a favored option in aerospace, automotive, and industrial fields.
| Sizes (all Dimensions in milimeter) | Approx Weight Titanium Angle Bar (kilogram/meter) | Titanium Gr 5 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Ti Alloy Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes,we offer custom sizes for Titanium Grade 5 Angle to fit particular project needs. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all your requirements. For more information, reach out to us at sales@alshakruplates.ae.
Titanium Grade 5 Angles are widely applied across numerous industries demanding both high strength and resistance to corrosion. Within the aerospace field, they serve an important function in aircraft frames, engine parts, and landing gear. The marine industry depends on them for offshore platforms and ship structures, owing to their capacity to resist seawater corrosion. For chemical processing, they are indispensable in heat exchangers and reactor vessels. Additionally, they can be seen in medical devices, sports equipment, and power generation systems, delivering durable performance and structural integrity.
