S690ql Steel Sheet and Plates

Al Shakru Sheets and Plates, a leading manufacturer and supplier based in Dubai, UAE, focuses on high-strength S690QL Steel Sheets and Plates engineered to deliver exceptional structural performance, durability, and reliability. These quenched and tempered high-strength low-alloy (HSLA) steels are produced to comply with rigorous international standards, guaranteeing superior toughness, weldability, and resistance to both dynamic and static loads. By combining advanced manufacturing methods with rigorous quality control, Al Shakru Sheets and Plates reliably delivers high-performance steel solutions. The company serves a wide range of industries, such as construction, heavy engineering, and transportation, offering S690QL Steel Sheets and Plates ideally suited for applications requiring an outstanding strength-to-weight ratio, dimensional stability, and durable structural integrity.

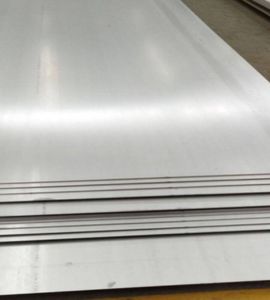

S690ql Steel Cold Rolled Plates

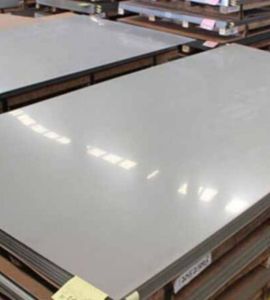

S690ql Steel Hot Rolled Plates

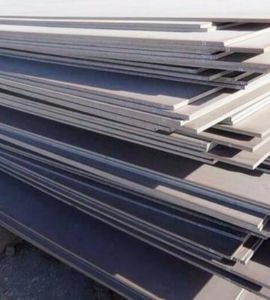

S690ql Steel Shim Sheets

S690ql Steel Sheets Dealer in Abu Dhabi, S690ql Steel Plates Supplier in Abu Dhabi, S690ql Steel Sheets in Al Ain, S690ql Steel Plates Size Chart, S690ql Steel Sheet Price in Ajman, S690ql Steel Plates Supplier in UAE, S690ql Steel Sheet Stockist in Jebel Ali, S690ql Steel Sheets and Plates Exporter in UAE, S690ql Steel Sheet Stockist in Dubai, S690ql Steel Plates Supplier in Jebel Ali

S690QL Steel Sheets and Plates are produced from high-strength low-alloy steels containing carbon (≤0.22%), manganese (≤1.60%), silicon (≤0.50%), phosphorus (≤0.035%), and sulfur (≤0.035%). They also incorporate microalloying elements such as vanadium, niobium, and titanium to enhance their mechanical properties. These plates offer a minimum yield strength of 690 MPa and tensile strength between 750 and 950 MPa. They are recognized for their outstanding toughness, weldability, and impact resistance, even at sub-zero temperatures, which makes them well suited for heavy-duty structural applications that demand high strength and dependability under varying loading conditions.

S690ql Steel Sheet and Plates Specification

Thickness :5MM & Above
Width : 1500 – 3500mm
Length : 3000 – 18000mm
Grade : S690QL EN10137-2 EN10025-6:2004, A709-100, DILLIMAX 690, NAXTRA 70, WELDOX 700, E690, JFE HITEN 780LE, ALFORM 700

S690ql Steel Sheet and Plates Chemical Composition

Percentage %	Element	Percentage %	Element
0.050	Cu	0.020	C
0.070	Mo	0.080	Si
0.006	Nb*	1.070	Mn
2.00	Ni	0.0025	P
0.005	Ti*	0.0015	S
0.012	V*	0.0015	N
0.015	Zr*	0.00050	B
		1.050	Cr

S690ql Steel Sheet and Plates Mechanical Properties

Plate Thickness	Yield Strength	Tensile Strength	Elongation	Impact Strength
MM	ReH (MPa)	Rm (MPa)	A5 % Minimum	J, Minimum
3 to 50	690	770 – 940	14	30 @ -40º C
> 50 to 100	650	760 – 930	14	30 @ -40º C
> 100 to 150	630	710 – 900	14	30 @ -40º C

S690ql Steel Sheets Price in Ajman, S690ql Steel Hot Rolled Weight Chart, S690ql Steel Cold Rolled Supplier in UAE, Stockist of S690ql Steel Cold Rolled Sheets in Jebel Ali, S690ql Steel Perforated Sheet Supplier in UAE, S690ql Steel Perforated Plates Price List in Dubai, S690ql Steel Perforated Plates Supplier in Jebel Ali, S690ql Steel Chequered Plates Exporter in Abu Dhabi, S690ql Steel Polished Plates Exporter in UAE, S690ql Steel Perforated Plates Exporter in Al Ain, S690ql Steel Sheet and Plate in Ajman

If You Are Looking To Buy High Quality Piping Products ?

We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.

Largest S690ql Steel Sheet and Plates Manufacturer and Exporter in Dubai, UAE

Al Shakru Sheets and Platesbased in Dubai, UAE, is a top supplier and stockist of premium metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all delivered with outstanding service and customized to fulfill our customers specific needs. With an emphasis on providing superior products, we serve a broad range of industries, offering dependable solutions for varied applications. Our extensive inventory includes Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.

S690ql Steel Clad Sheets Distributor in UAE, S690ql Steel Perforated Plates Supplier in Dubai, S690ql Steel Perforated Sheet Weight Chart, S690ql Steel Plate Exporter in Jebel Ali, S690ql Steel Polished Sheets Manufacturer in Abu Dhabi, S690ql Steel Shim Sheet and Plate Price List in UAE, S690ql Steel Chequered Plates Sizes in mm, S690ql Steel Hot Rolled Plate Distributor in Al Ain, S690ql Steel Sheets and Plates Ajman

S690QL steel sheets and platesdeliver outstanding benefits, such as a high yield strength of 690 MPa, which makes them well-suited for heavy-duty uses. Their superior tensile strength guarantees excellent load-bearing capacity, even under extreme conditions. These plates offer great weldability and excellent formability, enabling smooth fabrication. Their remarkable toughness and impact resistance, even at low temperatures, deliver dependability in harsh environments. On top of that, S690QL’s high fatigue resistance and durability reduce wear and tear, lowering maintenance costs. These qualities make S690QL plates ideal for structural, industrial, and engineering applications.

Types of S690ql Steel Sheet and Plates

S690ql Steel Plates Manufacturer in Abu Dhabi, S690ql Steel Plates & Sheets in Al Ain, S690ql Steel Mirror Finish Plates Supplier in Dubai, S690ql Steel Polished Plates Exporter in Jebel Ali, S690ql Steel Chequered Plates Price List in UAE, S690ql Steel Cold Rolled Plate Distributor in Al Ain, S690ql Steel Clad Plates and Sheets Supplier in Abu Dhabi, S690ql Steel Sheet and Plate Distributor in UAE, S690ql Steel Perforated Plate Sizes in mm

Are Custom Sizes Available for S690ql Steel Sheet and Plates?

Yes, we provide custom sizes for S690ql Steel Sheet and Plates to suit particular project requirements. At Al Shakru Sheets and Plates, our team is committed to delivering tailored solutions for all of your needs. To learn more, reach out to us at sales@alshakruplates.ae.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of S690ql Steel Sheet and Plates

S690QL Steel Sheets and Plates are widely applied across industries requiring high strength, toughness, and dependable structural performance. They are frequently used in the construction of bridges, high-rise buildings, and heavy engineering structures . Within the transportation and machinery sectors , they appear in cranes, excavators, trailers, and industrial equipment . Thanks to their outstanding weldability, impact resistance, and dimensional stability, they are also well suited for offshore structures, pressure vessels, and large-scale fabrication projects .
