ABS DH36 Sheet and Plates

Al Shakru Sheets and Plates is a well-regarded manufacturer and supplier based in Dubai, UAE, with expertise in high-quality ABS DH36 Sheets and Plates ideally suited for high-strength marine and structural uses. These plates are known for their remarkable toughness, superb weldability, and strong resistance to corrosion, all while adhering to the rigorous standards established by the American Bureau of Shipping (ABS). Through its dedication to precision engineering and rigorous quality control, Al Shakru Sheets and Plates supplies products you can rely on to perform dependably in even the most demanding environments. Serving the shipbuilding, offshore, and marine industries, the company offers durable ABS DH36 Sheets and Plates that guarantee safety, stability, and extended service life, even under severe ocean conditions.

ABS DH36 Cold Rolled Plates

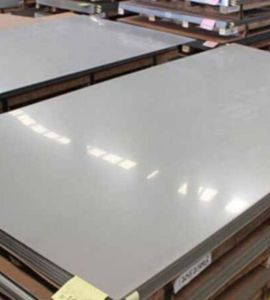

ABS DH36 Hot Rolled Plates

ABS DH36 Shim Sheets

ABS DH36 Plates Manufacturer in Abu Dhabi, ABS DH36 Plates & Sheets in Al Ain, ABS DH36 Mirror Finish Plates Supplier in Dubai, ABS DH36 Polished Plates Exporter in Jebel Ali, ABS DH36 Chequered Plates Price List in UAE, ABS DH36 Cold Rolled Plate Distributor in Al Ain, ABS DH36 Clad Plates and Sheets Supplier in Abu Dhabi, ABS DH36 Sheet and Plate Distributor in UAE, ABS DH36 Perforated Plate Sizes in mm

ABS DH36 Sheets and Plates are manufactured from high-strength structural steel, combining carbon, manganese, silicon, phosphorus, sulfur, and small quantities of alloying elements such as niobium and vanadium. They deliver a minimum yield strength of 355 MPa along with a tensile strength spanning 490 to 620 MPa. These plates are recognized for their exceptional toughness, even at low temperatures, as well as their superb weldability. To ensure uniform mechanical properties and structural integrity under heavy loads and marine environments, ABS DH36 Sheets and Plates undergo either normalizing or thermomechanical rolling.

ABS DH36 Sheet and Plates Specification

ABS EH 36 Plates
Item	shipbuilding Steel Plate
Specification	ASTM A131 / A131M
Width	1200mm to 4000mm
Thickness	4mm to 260mm,
Length	3000mm to 18000mm.
ABS DH 36 Plates
Width	1500mm to 4020mm
Thickness	6mm to 240mm
Length	3000mm to 27000mm
Surface Treatment	With anti-rust painting.
UT test	S0E1, S1E2, S2E3 and other standard which is required by customers.

ABS DH36 Sheet and Plates Chemical Composition

AB/DH36 high Strength Chemical Composition
Grade	The Element Max (%)
Grade	P	Si	C	Mn	N	S	Al
AB/DH36	0.035	0.1-0.50	0.18	0.90-1.6		0.035	0.015
	Cu	V	Nb	Ti	Mo	Cr	Ni
	0.35	0.05-0.10	0.02-0.05	0.02	0.08	0.2	0.4

ABS DH36 Sheet and Plates Mechanical Properties

ABS DH36 high strength property
Grade		Mechanical Property			Charpy V Impact Test
Grade	Thickness	Tensile	Yield	Elongation	Energy 1	Degree	Energy 2
DH36	milimeter	Mpa	Minimum Mpa	Minimum %	J	-20	J

	50＜t≤70	490 to 620	355	21%	27		41
	t≤50	490 to 620	355	21%	24		34
	70＜t≤100	490 to 620	355	21%	34		50
Note: Energy 2 is longitudinal whereas Energy 1 is transverse impact test

ABS DH36 Clad Sheets Distributor in UAE, ABS DH36 Perforated Plates Supplier in Dubai, ABS DH36 Perforated Sheet Weight Chart, ABS DH36 Plate Exporter in Jebel Ali, ABS DH36 Polished Sheets Manufacturer in Abu Dhabi, ABS DH36 Shim Sheet and Plate Price List in UAE, ABS DH36 Chequered Plates Sizes in mm, ABS DH36 Hot Rolled Plate Distributor in Al Ain, ABS DH36 Sheets and Plates Ajman

If You Are Looking To Buy High Quality Piping Products ?

We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.

Largest ABS DH36 Sheet and Plates Manufacturer and Exporter in Dubai, UAE

Al Shakru Sheets and Platesbased in Dubai, UAE, is a top supplier and stockist of premium metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all delivered with outstanding service and customized to fulfill our customers specific needs. With an emphasis on providing superior products, we serve a broad spectrum of industries, offering dependable solutions for varied applications. Our comprehensive inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.

ABS DH36 Sheets Price in Ajman, ABS DH36 Hot Rolled Weight Chart, ABS DH36 Cold Rolled Supplier in UAE, Stockist of ABS DH36 Cold Rolled Sheets in Jebel Ali, ABS DH36 Perforated Sheet Supplier in UAE, ABS DH36 Perforated Plates Price List in Dubai, ABS DH36 Perforated Plates Supplier in Jebel Ali, ABS DH36 Chequered Plates Exporter in Abu Dhabi, ABS DH36 Polished Plates Exporter in UAE, ABS DH36 Perforated Plates Exporter in Al Ain, ABS DH36 Sheet and Plate in Ajman

ABS DH36 sheet and platesdeliver a wide range of benefits, making them a leading option for marine and offshore uses. They offer outstanding strength, with a minimum yield strength of 355 MPa and high tensile strength, guaranteeing durability and reliability. The steel’s resistance to corrosion, particularly in seawater conditions, boosts its lifespan. Moreover, ABS DH36 is recognized for its good weldability and formability, permitting easy fabrication into intricate shapes. Its toughness at low temperatures also ensures performance in demanding conditions, making it well-suited for shipbuilding, offshore structures, and heavy-duty marine equipment.

Types of ABS DH36 Sheet and Plates

ABS DH36 Sheets Dealer in Abu Dhabi, ABS DH36 Plates Supplier in Abu Dhabi, ABS DH36 Sheets in Al Ain, ABS DH36 Plates Size Chart, ABS DH36 Sheet Price in Ajman, ABS DH36 Plates Supplier in UAE, ABS DH36 Sheet Stockist in Jebel Ali, ABS DH36 Sheets and Plates Exporter in UAE, ABS DH36 Sheet Stockist in Dubai, ABS DH36 Plates Supplier in Jebel Ali

Are Custom Sizes Available for ABS DH36 Sheet and Plates?

Yes, we provide custom sizes for ABS DH36 Sheet and Plates to suit particular project needs. Here at Al Shakru Sheets and Plates, our team is committed to delivering tailored solutions for every one of your requirements. To learn more, reach out to us at sales@alshakruplates.ae.

ABS DH36 Sheet and Plates Equivalent Grades

Equivalent steel grade of AB/DH36
DNV	GL	LR	BV	CCS	NK	KR	RINA
NV D36	GL-D36	LR/DH36	BV/DH36	CCS/D36	K D36	R D36	RI/D36

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of ABS DH36 Sheet and Plates

Mainly, ABS DH36 Sheets and Plates are employed in the shipbuilding and marine sectors to build the hulls, decks, and superstructures of ships, vessels, and offshore platforms. They are also vital in the manufacturing of oil rigs, container ships, and naval structures, owing to their high strength-to-weight ratio and ability to withstand seawater corrosion. Aside from maritime applications, ABS DH36 Sheets and Plates are used in heavy engineering, bridges, and load-bearing structures that require outstanding toughness and weldability. Their long-lasting nature and dependability make them a preferred option for both marine and structural engineering projects.
