Phosphorous Bronze Sheets and Plates

Al Shakru Sheets and Plates, a leading manufacturer and supplier based in Dubai, UAE, focuses on premium Phosphorous Bronze Sheets and Plates renowned for their exceptional strength, corrosion resistance, and superior wear performance. These items are engineered to meet international quality standards, combining the impressive mechanical qualities of bronze with the extra rigidity and durability that phosphorus contributes. Al Shakru Sheets and Plates ensures accurate thickness, a fine surface finish, and dependable material performance, making these sheets and plates ideal for challenging industrial uses. The company serves numerous sectors, such as marine, electrical, automotive, and mechanical engineering, delivering trustworthy Phosphorous Bronze Sheets and Plates that guarantee durable performance, fatigue resistance, and excellent dimensional stability.

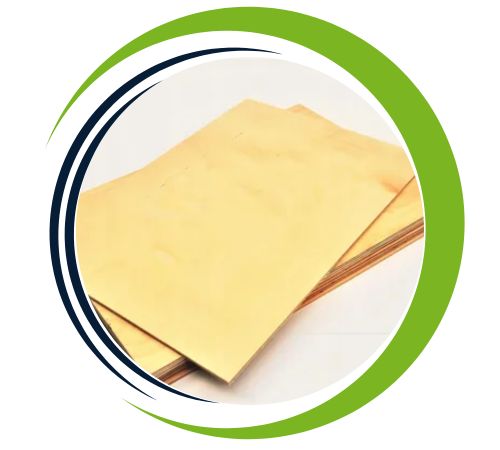

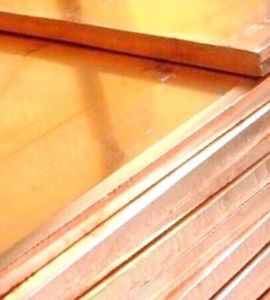

Phosphorous Bronze Plate

Phosphorous Bronze HR Plates

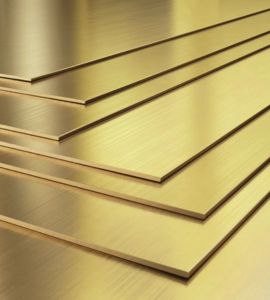

Phosphorous Bronze CR Sheet

ASTM B103 Phosphor Bronze Sheets Dealer in Abu Dhabi, Phosphorous Bronze Plates Supplier in Abu Dhabi, Phosphorous Bronze Sheets in Al Ain, Phosphorous Bronze Plates Size Chart, Phosphorous Bronze Sheet Price in Ajman, Phosphorous Bronze Plates Supplier in UAE, Phosphorous Bronze Sheet Stockist in Jebel Ali, Alloy Sheets and Plates Exporter in UAE, Alloy Sheet Stockist in Dubai, Phosphorous Bronze Plates Supplier in Jebel Ali

Phosphorous Bronze Sheets and Plates consist mainly of copper (roughly 90–95%), tin (about 4–10%), and phosphorus (nearly 0.01–0.35%), producing an optimal balance of strength, hardness, and corrosion resistance. These sheets and plates deliver notable tensile strength in the 350–550 MPa range, together with solid ductility and fatigue resistance. They are recognized for their strong wear resistance, minimal friction, and steadiness even under severe conditions, which makes them well-suited for uses that require both mechanical dependability and durability amid ongoing operational strain.

Phosphorous Bronze Sheets and Plates Specification

Material	Phosphor Bronze Sheet/Plate
Grade	Alloy 510, Alloy 521, Alloy 519, Alloy 544
Standard	ASTM B103
Size	Thickness 0.1 mm to 50 mm; Width up to 500 mm; Length up to 2000 mm
Surface	Rolling surface, Chemical cleaned, Grinding

Chemical Composition of Phosphorous Bronze Sheets and Plates

Element	Zinc (Zn)	Iron (Fe)	Tin (Sn)	Copper (Cu)	Lead (Pb)	Phosphorous (P)	Nickel (Ni)	Others
%	.00 – .20	.00 – .10	4.50 – 5.50	Balance	.00 – .02	.01 – .40	.00 – .20	.00 – .20

Mechanical Properties Of Phosphorous Bronze Sheets and Plates

Tensile strength	Hardness	Elongation at break	Modulus of elasticity	Izod impact strength	Shear strength
320 – 740 MPa	Brinell : 80 – 225	< 60 %	90 – 120 GPa	62 J m⁻¹	250 – 430 MPa

Electrical Properties of Phosphorous Bronze Sheets and Plates

Electrical resistivity	11-16 µOhmcm
Temperature coefficient	0.00060 – 0.00070 K⁻¹

Phosphorous Bronze Sheets Price in Ajman, Phosphorous Bronze Hot Rolled Weight Chart, Phosphorous Bronze Cold Rolled Supplier in UAE, Stockist of Phosphorous Bronze Alloy Cold Rolled Sheets in Jebel Ali, Phosphorous Bronze Perforated Sheet Supplier in UAE, Phosphorous Bronze 2B Finish Plates Price List in Dubai, Alloy Perforated Plates Supplier in Jebel Ali, Phosphorous Bronze Chequered Plates Exporter in Abu Dhabi, Phosphorous Bronze Alloy Polished Plates Exporter in UAE, Phosphorous Bronze Perforated Plates Exporter in Al Ain, Phosphorous Bronze Sheet and Plate in Ajman

If You Are Looking To Buy High Quality Piping Products ?

We supply materials accompanied by mill test certificates as well as third-party test certificates, guaranteeing top-tier quality and full compliance.

Largest Phosphorous Bronze Sheets and Plates Manufacturer and Exporter in Dubai, UAE

Al Shakru Sheets and Plates, headquartered in Dubai, UAE, is a top supplier and stockist of premium metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on delivering exceptional products, we serve a broad range of industries, offering dependable solutions for varied applications. Our large inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.

Thermal Properties of Phosphorous Bronze Sheets and Plates

Melting Point	Thermal Conductivity	Electrical Conductivity 20°C	Coeff. of Thermal Expansion 20-300°C	Specific Heat
1050°C	69 W/m°C	15% IACS	17.8 x 10-6	377 J/Kg°K

Fabrication Properties of Phosphorous Bronze Sheets and Plates

Machinability Rating	Annealing Temperature	Hot formability	Stress Relieving temperature	Cold Formability
20%	675 to 745°C	Limited	200 to 350°C	Excellent

Phosphorous Bronze Sheets and Plates Sizes

Dimensions in mm	Thickness in mm
200 X 150	.2
200 X 150	.25
200 X 150	.3
200 X 150	.4
200 X 150	.5
200 X 150	.8
200 X 150	1

Phosphorous Bronze Sheets and Plates Weight Chart

Size in mm (L * W * T)	Weight in kilogram
2000 * 300 * .5	2.69
2000 * 300 * .6	3.23
2000 * 300 * 1.2	6.46
2000 * 300 * 2	10.75
2000 * 300 * 2.5	13.43
2000 * 300 * 3	16.12

Phosphorous Bronze Clad Sheets Distributor in UAE, Phosphorous Bronze 2B Finish Plates Supplier in Dubai, Phosphorous Bronze Perforated Sheet Weight Chart, Phosphorous Bronze Plate Exporter in Jebel Ali, Phosphorous Bronze Polished Sheets Manufacturer in Abu Dhabi, Phosphorous Bronze Shim Sheet and Plate Price List in UAE, Phosphorous Bronze Chequered Plates Sizes in mm, Phosphorous Bronze Alloy Hot Rolled Plate Distributor in Al Ain, Phosphorous Bronze Sheets and Plates Ajman

Phosphor bronze sheets and platesare produced from a modest proportion of copper and tin phosphorus, which boosts their strength, corrosion resistance and machinability In typical products 90-95% copper, 5-1. 8% tin, 0.01-0 and .35% phosphorus. These alloys display outstanding mechanical properties such as high tensile strength (up to 600 MPa), superb fatigue resistance and low abrasion resistance, especially corrosion resistance in marine and chemical environments, and also high toughness, Owing to their high durability and durability, phosphor copper sheets and plates are perfect for precision applications across a variety of industrial applications.

Types of Phosphorous Bronze Sheets and Plates

Phosphorous Bronze Plates Manufacturer in Abu Dhabi, Phosphorous Bronze Plates and Sheets Al Ain, ASME SB 103 Phosphorous Bronze Plates Supplier in Dubai, Phosphorous Bronze Polished Plates Exporter in Jebel Ali, Phosphorous Bronze Alloy Chequered Plates Price List in UAE, Phosphorous Bronze Cold Rolled Plate Distributor in Al Ain, Phosphorous Bronze Clad Plates and Sheets Supplier in Abu Dhabi, Phosphorous Bronze Sheet and Plate Distributor in UAE, Phosphorous Bronze Perforated Plate Sizes in mm

Are Custom Sizes Available for Phosphorous Bronze Sheets and Plates?

Yes,we provide custom dimensions for Phosphorous Bronze Sheets and Plates to suit particular project needs. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all your requirements. For more information, reach out to us at sales@alshakruplates.ae.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Phosphorous Bronze Sheets and Plates

Phosphorous Bronze Sheets and Plates are widely applied across industries where high strength, corrosion resistance, and outstanding mechanical performance are essential. Typical applications include marine components, bushings, bearings, gears, and precision machinery . Within the electrical and electronics sectors , they function as connectors, terminals, springs, and other conductive components , owing to their excellent conductivity and resistance to wear. Because of their toughness, fatigue strength, and dimensional stability, they are equally well suited for automotive parts, industrial hardware, and structural components .
