Manganese Bronze Sheets and Plates

Al Shakru Sheets and Plates, a premier manufacturer and supplier based in Dubai, UAE, focuses on high-quality Manganese Bronze Sheets and Plates engineered to deliver exceptional strength, corrosion resistance, and wear performance. These materials are renowned for their durability across marine, industrial, and mechanical applications, effortlessly combining superior machinability with strong structural integrity. At Al Shakru Sheets and Plates, we place great importance on accurate dimensions, a fine surface finish, and reliable quality that adheres to international standards. Our Manganese Bronze Sheets and Plates are widely used across industries requiring dependable materials that can withstand heavy loads, abrasive conditions, and demanding environments, making them ideal for components where both strength and corrosion resistance are essential.

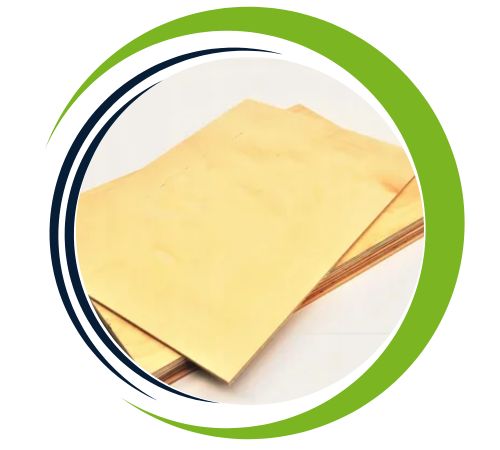

Manganese Bronze Sheet

Manganese Bronze Cold Rolled Plates

Manganese Bronze Rolled Plates

Manganese Bronze Sheets Dealer in Abu Dhabi, Manganese Bronze Plates Supplier in Abu Dhabi, Manganese Bronze Sheets in Al Ain, Manganese Bronze Plates Size Chart, Manganese Bronze Sheet Price in Ajman, Manganese Bronze Plates Supplier in UAE, Manganese Bronze Sheet Stockist in Jebel Ali, Alloy Sheets and Plates Exporter in UAE, Alloy Sheet Stockist in Dubai, Manganese Bronze Plates Supplier in Jebel Ali

Manganese Bronze Sheets and Plates are primarily made up of copper (≈60–65%), manganese (≈1–2%), aluminum (≈1–2%), iron (≈1%), and zinc (balance) . They feature tensile strength ranging from 550–750 MPa , solid ductility, and outstanding wear resistance. These sheets and plates additionally deliver superb corrosion resistance in seawater and industrial settings, together with notable fatigue and impact strength. The combination of high strength, toughness, and machinability ensures dependability in tough structural and mechanical applications where longevity and dimensional stability matter most.

Manganese Bronze Sheets and Plates Specification

Standard	JIS H3250-2006,ASTM B152M,GB/T2040-2008,ASTM B36,ASTM B194,ASTM B888, ASTM B19,ASTM B122,etc
Thickness	0.1-120mm
Width	2-2500mm
Length	1m,2m,3m,6m,or as required
Surface	mill,polished,bright,mirror,hair line,brush,checkered,antique,sand blast,etc
Container size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
Application	Brass plate has a high corrosion resistance, and have good plasticity,in the air easy to cold and hot pressure processing,easy to welding, forging and tin, no stress corrosion cracking the tendency.

Chemical Composition ofManganese Bronze Sheets and Plates

Cu(1)	Al	Fe	Pb	Mn	Sn	Zn
Min./Max.	57.0-60.0	.25	.8-2.0	.20	.05-.50	.50-1.5	Rem.
Nominal	58.5	–	1.4	–	.10	1.0	39.0

Mechanical Properties Of Manganese Bronze Sheets and Plates

ensile Strength, min		Yield Strength, at 0.5% extension under load, typ		Elongation, in 2 in. or 50 mm typ	Brinell Hardness (500 kg load)	Remarks
ksi	MPa	ksi	MPa	%	typical BHN
65	448	25	172	20	90

Manganese Bronze Sheets Price in Ajman, Manganese Bronze Hot Rolled Weight Chart, Manganese Bronze Cold Rolled Supplier in UAE, Stockist of Manganese Bronze Alloy Cold Rolled Sheets in Jebel Ali, Manganese Bronze Perforated Sheet Supplier in UAE, Manganese Bronze Perforated Plates Price List in Dubai, Alloy Perforated Plates Supplier in Jebel Ali, Manganese Bronze Chequered Plates Exporter in Abu Dhabi, Manganese Bronze Alloy Polished Plates Exporter in UAE, Manganese Bronze Perforated Plates Exporter in Al Ain, Manganese Bronze Sheet and Plate in Ajman

If You Are Looking To Buy High Quality Piping Products ?

We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.

Largest Manganese Bronze Sheets and Plates Manufacturer and Exporter in Dubai, UAE

Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on supplying superior products, we serve a broad array of industries, offering dependable solutions for varied applications. Our large inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.

Physical Properties of Manganese Bronze Sheet

US Customary	Metric
Melting Point – Liquidus	1616 °F	880 °C
Melting Point – Solidus	1583 °F	862 °C
Density	0.301 lb/in3 at 68 °F	8.33 gm/cm3 at 20 °C
Specific Gravity	8.33	8.33
Electrical Conductivity	19% IACS at 68 °F	0.110 MegaSiemens/cm at 20 °C
Thermal Conductivity	51 Btu/sq ft/ft hr/°F at 68 °F	88.3 W/m at 20 °C
Coefficient of Thermal Expansion 68-572	11 · 10-6 per °F (68-572 °F)	19 · 10-6 per °C (20-300 °C)
Specific Heat Capacity	0.09 Btu/lb/°F at 68 °F	377.1 J/kg at 20 °C
Modulus of Elasticity in Tension	14000 ksi	96527 MPa

Manganese Bronze Clad Sheets Distributor in UAE, Manganese Bronze Perforated Plates Supplier in Dubai, Manganese Bronze Perforated Sheet Weight Chart, Manganese Bronze Plate Exporter in Jebel Ali, Manganese Bronze Polished Sheets Manufacturer in Abu Dhabi, Manganese Bronze Shim Sheet and Plate Price List in UAE, Manganese Bronze Chequered Plates Sizes in mm, Manganese Bronze Alloy Hot Rolled Plate Distributor in Al Ain, Manganese Bronze Sheets and Plates Ajman

Manganese bronze sheets and platesprovide numerous benefits including outstanding strength, durability and corrosion resistance, which makes them well-suited for demanding environments They demonstrate high tensile strength, fatigue resistance and fatigue resistance, and this guarantees a long-lasting business. These materials show strong resistance to seawater and chemicals, which makes them perfect for marine and coastal uses. Manganese bronze also delivers excellent machinability, making it simpler to produce in complex shapes. Its capacity to endure extreme temperatures and pressures makes it dependable for a range of industries including automotive, industrial and construction.

Types of Manganese Bronze Sheets and Plates

Manganese Bronze Plates Manufacturer in Abu Dhabi, Manganese Bronze Plates & Sheets Al Ain, Manganese Bronze Mirror Finish Plates Supplier in Dubai, Manganese Bronze Polished Plates Exporter in Jebel Ali, Manganese Bronze Alloy Chequered Plates Price List in UAE, Manganese Bronze Cold Rolled Plate Distributor in Al Ain, Manganese Bronze Clad Plates and Sheets Supplier in Abu Dhabi, Manganese Bronze Sheet and Plate Distributor in UAE, Manganese Bronze Perforated Plate Sizes in mm

Are Custom Sizes Available for Manganese Bronze Sheets and Plates?

Yes,we provide bespoke dimensions for Manganese Bronze Sheets and Plates to satisfy particular project requirements. The team here at Al Shakru Sheets and Plates is committed to delivering customized solutions for everything you need. To learn more, reach out to us at sales@alshakruplates.ae.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Manganese Bronze Sheets and Plates

Manganese Bronze Sheets and Plates are used in marine engineering, heavy machinery, industrial valves, gears, shafts, and fasteners . Because of their excellent resistance to corrosion and wear, they work perfectly for ship propellers, pump components, bearings, and high-load mechanical parts . They are also applied in hydraulic systems, construction equipment, and aerospace components , where durability and enduring performance are critical. Thanks to their distinctive blend of strength, machinability, and resistance to environmental conditions, Manganese Bronze Sheets and Plates provide reliable, long-lasting solutions for the industries that depend on them.
