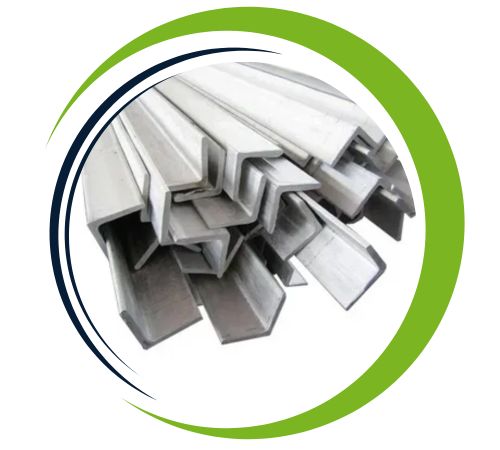

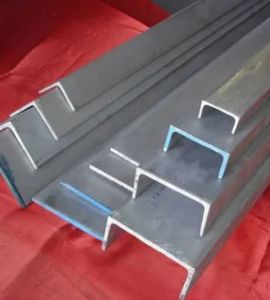

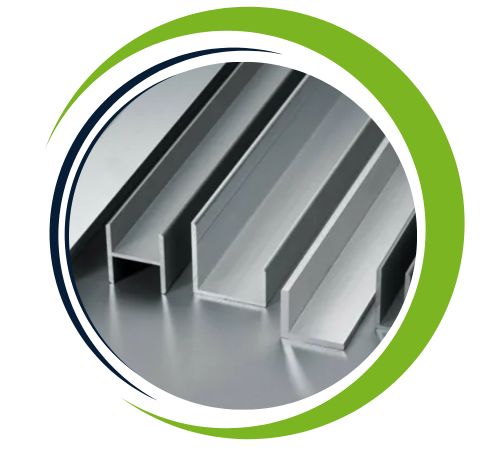

Al Shakru Sheets and Plates, a premier manufacturer and supplier based in Dubai, UAE, focuses on producing high-quality Nickel Alloy 201 Angles . These angles are engineered to deliver exceptional corrosion resistance, mechanical strength, and reliable performance in high-temperature conditions. Manufactured to meet strict international standards, they guarantee accurate dimensions, a uniform surface finish, and lasting durability even in the most demanding industrial settings. By combining advanced production techniques with rigorous quality control, Al Shakru Sheets and Plates reliably supplies high-performance nickel alloy products. They serve a wide range of industries, such as chemical processing, aerospace, marine, and electronics, offering Nickel Alloy 201 Angles ideal for structural support, fabrication, and applications requiring resistance to severe environments, oxidation, and thermal stress.
Nickel Alloy 201 Angles consist primarily of high-purity nickel (≥99.6%) together with minor quantities of iron, copper, carbon, and silicon. They feature a tensile strength ranging from 370–500 MPa, a yield strength of 100–300 MPa, and remarkable ductility. These angles perform exceptionally well at withstanding corrosion in both reducing and caustic settings, hold onto their mechanical stability even under high temperatures, and deliver solid thermal and electrical conductivity. This combination of toughness, formability, and durability makes Nickel Alloy 201 Angles well-suited for demanding industrial, chemical, and high-performance structural applications.
Specifications :ASTM B160 / ASME SB160
Angle Size Range :20 x 20 mm up to 100 x 100 mm
Angles Thickness :3 to 12 mm (varies by size)
Length :3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Lengths
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | – | LC-Ni 99 |
We supply materials accompanied by mill test certificates as well as third-party test certificates, guaranteeing the highest standards of quality and compliance.
Nickel Alloy 201 Anglesoffer outstanding corrosion resistance, making them well suited for chemical processing and marine environments. They demonstrate superb thermal and electrical conductivity, guaranteeing efficiency in heat exchangers and electrical components. Their considerable strength and toughness deliver durability under severe conditions. Nickel Alloy 201 is remarkably oxid-resistant, making it appropriate for high-temperature applications. Its straightforward fabrication and weldability boost versatility across industries. The alloy’s magnetic and chemical stability likewise guarantees dependable performance in sensitive uses such as electronics and food processing, highlighting cost-effectiveness and lasting durability.
Nickel Alloy 201 Angles are widely applied across industries requiring strong corrosion resistance, mechanical durability, and thermal stability. They are frequently employed in chemical processing equipment, caustic evaporators, and reaction vessels . Within the aerospace and electronics fields , they function as structural supports, high-performance fabrication components, and electrical connectors . Their outstanding resistance to oxidation, caustic conditions, and thermal stress likewise makes them well suited for marine, petrochemical, and industrial machinery applications .
