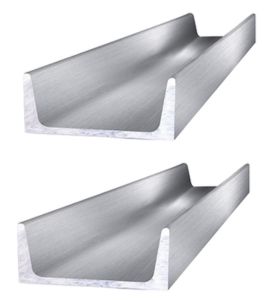

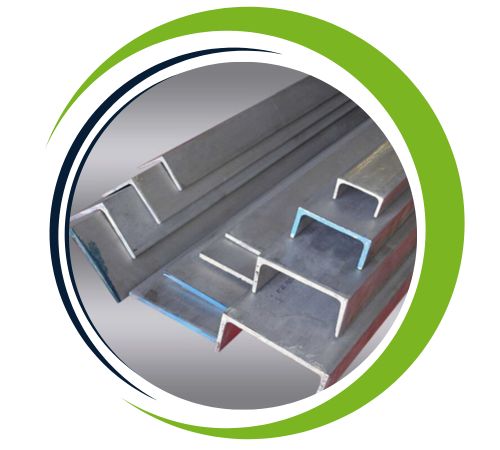

Al Shakru Sheets and Plates, a top manufacturer and supplier based in Dubai, UAE, focuses on premium Nickel Alloy 200 Channels engineered to deliver exceptional corrosion resistance, mechanical strength, and stability under high temperatures. These channels are made to comply with strict international standards, guaranteeing accurate dimensions, an excellent surface finish, and reliable durability for even the toughest industrial uses. By combining advanced manufacturing techniques with rigorous quality control, Al Shakru Sheets and Plates reliably provides high-performance nickel alloy solutions. They serve a range of industries, such as chemical processing, aerospace, marine, and electronics, supplying Nickel Alloy 200 Channels that are ideal for structural support, fabrication, and high-performance projects where resistance to harsh environments, oxidation, and thermal stress is essential.
Nickel Alloy 200 Channels consist mainly of high-purity nickel (≥99.0%) together with minor quantities of iron, copper, carbon, and silicon. They offer a tensile strength ranging from 380–500 MPa, a yield strength of 100–300 MPa, and outstanding ductility. These channels perform exceptionally at withstanding corrosion in reducing and caustic conditions, keep their mechanical stability even under high temperatures, and deliver solid thermal and electrical conductivity. This distinctive combination of toughness, formability, and durability makes Nickel Alloy 200 Channels well suited for critical industrial, structural, and high-temperature applications.
Specifications :ASTM B160 / ASME SB160
Channel Size Range :Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness :5 to 6 mm (varies with size)
Length :3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Lengths
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
We supply materials accompanied by both mill test certificates and third-party test certificates, guaranteeing top-tier standards of quality and compliance.
Nickel Alloy 200 Channel delivers numerous benefits, such as outstanding corrosion resistance, especially in alkaline settings and organic acids. It preserves its strength and toughness across both high and low temperatures, which makes it well-suited for challenging applications. Its superb weldability and formability offer flexibility in manufacturing, while its resistance to different types of corrosion, like pitting and crevice corrosion, guarantees durability and dependability. On top of that, it provides excellent resistance to atmospheric oxidation and retains high thermal and electrical conductivity, rendering it appropriate for sectors such as chemical processing and electronics.
Nickel Alloy 200 Channels are widely applied across industries that require strong corrosion resistance, mechanical strength, and thermal stability. They are frequently used in chemical processing plants, caustic evaporators, and reaction vessels. Within the aerospace and electronics fields, they function as structural supports, high-performance fabrication components, and electrical connectors. Their outstanding resistance to oxidation, elevated temperatures, and caustic conditions further makes them well suited for marine, petrochemical, and industrial applications.
