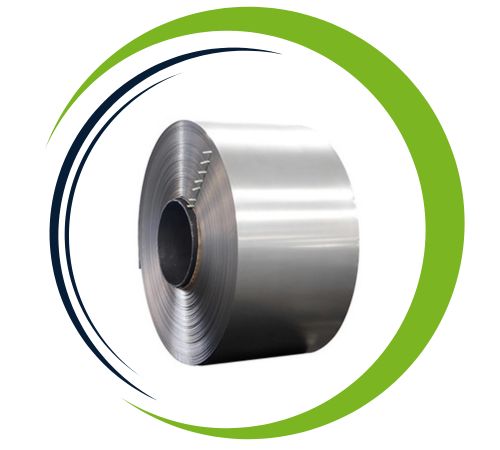

Al Shakru Sheets and Plates, based in Dubai, UAE, has built a strong reputation as a trustworthy manufacturer and supplier of Stainless Steel 316Ti Foils . These foils are prized for their exceptional corrosion resistance, durability, and thermal stability. Made from titanium-stabilized austenitic stainless steel, they offer excellent defense against intergranular corrosion and high-temperature oxidation. At Al Shakru Sheets and Plates, precise manufacturing and stringent quality control take precedence, guaranteeing that their 316Ti foils satisfy the requirements of diverse industrial and environmental applications. With a keen emphasis on quality and innovation, the company supplies reliable and efficient material solutions across a broad spectrum of industries both within the UAE and worldwide.
Stainless Steel 316Ti Foils consist of chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and titanium, which enhances their resistance to sensitization and corrosion. They feature a tensile strength of roughly 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. Having a density of approximately 8.0 g/cm³ and a melting range of 1375–1400°C, these foils retain remarkable toughness, weldability, and mechanical integrity, even under both low and high-temperature conditions.
| Item | Stainless Steel 316ti foil(Hot rolled, cold rolled) | |
| Thickness | 0.025 to 3 mm and as per Customer Requirement | |
| Width | 3 mm to 2000 mm and as per Customer Requirement | |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc | |
| Surface | the surface and finish of stainless steel 316ti foil: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | |
| Package | Shrink-wrapped ,Carton boxes,Wooden pallets,Wooden boxes ,Wooden crates Etc. required. |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | ||
| 316TI | Min | – | – | – | – | – | 16.0 | 2.00 | 10.0 | – | |
| max | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.1 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | ||
| Rockwell B (HR B) max | Brinell (HB) max | |||||
| 316TI | 515 | 205 | 35% | 75 | 205 | |
Stainless Steel 316Ti foils deliver outstanding corrosion resistance, particularly in demanding settings such as chemical processing, marine, and high-temperature uses. The inclusion of titanium boosts their strength, making them well-suited for structures subjected to heat and severe chemicals. These foils retain excellent weldability, formability, and durability, guaranteeing dependable performance. On top of that, Stainless Steel 316Ti offers greater pitting and crevice corrosion resistance than other stainless steels, positioning it as a leading option for industries that require high-performance materials with lasting reliability in extreme conditions.
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | |
| SS 316ti | 1.4571 | S31635 | SUS 316ti | Z6CNDT17‐12 | 320S31 | 08Ch17N13M2T | X6CrNiMoTi17-12-2 |
Stainless Steel 316Ti Foils are suited to a range of uses that call for outstanding resistance to corrosion and heat. They work perfectly for chemical processing, marine settings, heat exchangers, furnace components, and aerospace parts. On top of that, these foils serve the pharmaceutical, food processing, and architectural sectors because of their hygienic surface and lasting durability. Their impressive resistance to scaling and chloride-driven corrosion makes them well-suited for demanding industrial and coastal locations, guaranteeing strong performance and an extended service life even under tough conditions.
