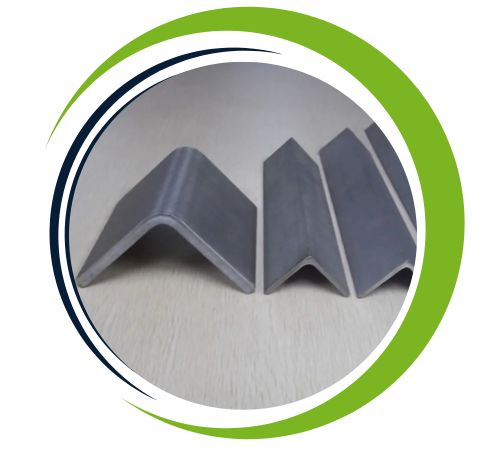

Al Shakru Sheets and Plates, a well-regarded manufacturer and supplier based in Dubai, UAE, is proud to provide premium Monel 400 Angles engineered to endure demanding industrial environments while offering exceptional corrosion resistance, strength, and durability. These nickel-copper alloy angles are produced to satisfy stringent international standards, guaranteeing accurate dimensions, a smooth surface finish, and dependable mechanical performance. By combining advanced manufacturing techniques with rigorous quality control, Al Shakru Sheets and Plates supplies products you can rely on. They serve a range of industries, such as marine, chemical processing, aerospace, and oil and gas, offering Monel 400 Angles that are ideal for structural support, fabrication, and any use requiring resistance to seawater, acids, alkalis, and oxidation, all while ensuring long-lasting reliability.
Monel 400 Angles are composed mainly of nickel (roughly 63–70%) and copper (approximately 28–34%), together with small quantities of iron, manganese, and carbon. They deliver notable tensile strength in the range of 550–750 MPa, yield strength from 200–450 MPa, and outstanding ductility. These angles are recognized for their superb corrosion resistance in seawater, acids, and alkalis, preserving mechanical stability even under elevated temperatures, and providing solid toughness and formability. Their distinctive combination of strength, durability, and flexibility makes Monel 400 Angles well suited for demanding structural, industrial, and marine uses.
| Specifications | : | ASTM B164 / ASME B164 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Monel 400 Angle | : | 5mm to 9mm |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |

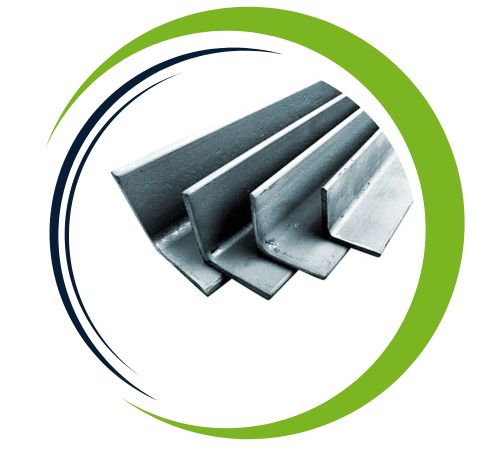

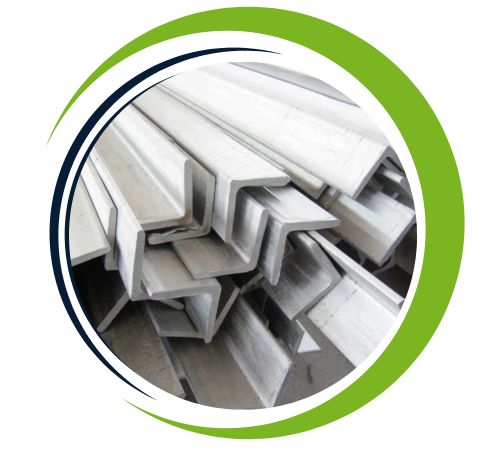

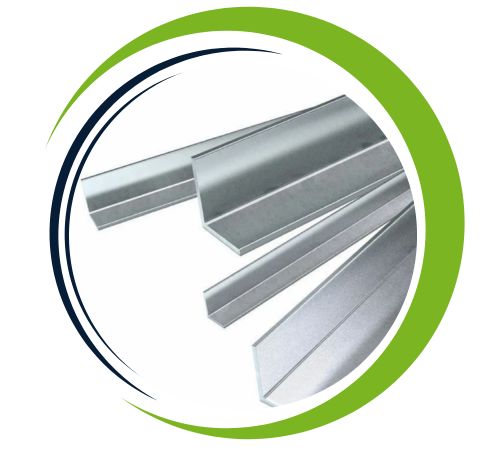

| Type | : | Angle, Architectural Angles, Equal Leg Angle, Unequal Leg Angle, Hot Rolled Steel Angle, Angle Bar |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 28.00 – 34.00 | 2.50 max | 63.00 min | 0.024 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40% |
Al Shakru Sheets and Plates, headquartered in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all delivered with outstanding service and customized to fulfill our customers specific needs. With an emphasis on providing exceptional products, we serve a broad array of industries, offering dependable solutions for varied applications. Our vast inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
DIN 2.4360 Anglesoffer several important benefits, including exceptional protection against corrosion, especially in seawater, acidic, and alkaline settings. They retain their strength and structural integrity at elevated temperatures, making them well-suited for marine, chemical, and industrial uses. With excellent resistance to stress corrosion cracking, pitting, and oxidation. Monel 400 angles hold up remarkably well in tough conditions. Furthermore, their easy fabrication and welding provide flexibility across a broad spectrum of structural and support uses. Their durable performance and dependability make them a favored option for challenging environments and mission-critical systems.
Yes,we provide bespoke dimensions for Monel 400 Angles to fit particular project requirements. The team at Al Shakru Sheets and Plates is committed to delivering customized solutions for every one of your needs. To learn more, reach out to us at sales@alshakruplates.ae.
| STANDARD | MATERIAL NO. | US | HE | GOST | BS | AFNOR | IN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | MNJMc 28-2.5-1.5 | THAT 13 | NO-30M | NiCu30Fe |
Monel 400 Angles are widely applied across industries that require strong corrosion resistance, mechanical strength, and thermal stability. They are commonly found in marine structures, chemical processing equipment, pump shafts, and fasteners . Within the aerospace and oil & gas sectors , they serve an essential function in valves, piping systems, and structural components . Because of their exceptional resistance to seawater, acids, and alkalis, they are also well suited for industrial machinery, heat exchangers, and high-performance engineering applications . Monel 400 Angles deliver lasting durability, dimensional stability, and reliable performance.
