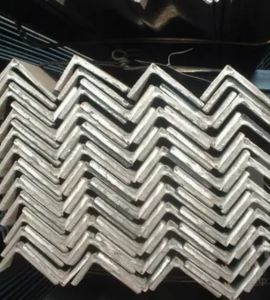

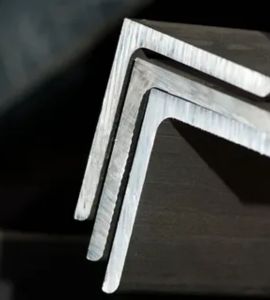

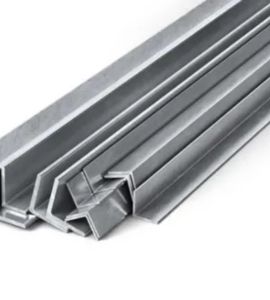

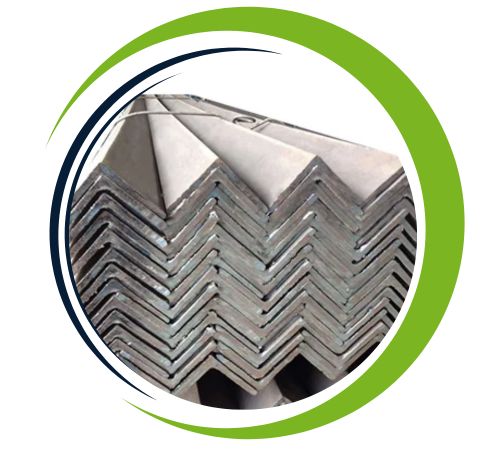

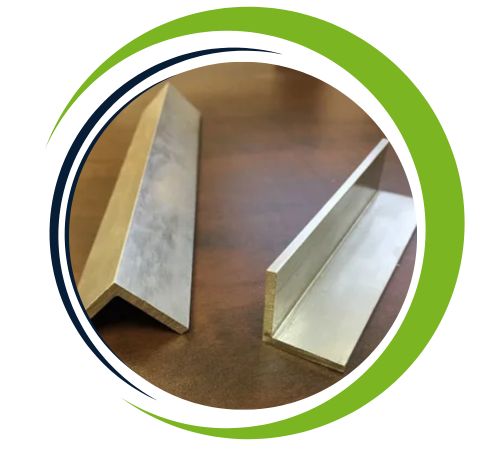

Al Shakru Sheets and Plates is a premier manufacturer and supplier based in Dubai, UAE, specializing in high-quality Incoloy Angles designed for demanding industrial applications. Known for their precision, dependability, and advanced manufacturing methods, the company produces materials that thrive in extreme conditions, including high temperatures, corrosive settings, and mechanical stress. Their Incoloy Angles are engineered to provide exceptional strength, durability, and structural integrity, guaranteeing reliable performance in critical scenarios. Serving industries such as chemical processing, oil and gas, marine, and power generation, Al Shakru Sheets and Plates provides tailored solutions that combine operational efficiency, enduring reliability, and superior material quality, making their Incoloy Angles ideal for challenging industrial environments.
Incoloy Angles are composed primarily of nickel, iron, and chromium, with molybdenum and copper added to enhance corrosion resistance. This alloy demonstrates outstanding mechanical characteristics, such as high tensile and yield strength, toughness, and solid ductility over a wide temperature range. Incoloy stays stable throughout thermal cycling and when subjected to aggressive chemical environments. It further offers excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, together with superb weldability and formability, which makes it well suited for applications demanding strength, durability, and lasting reliability under extreme industrial conditions.
Specifications :ASTM B425 / ASME SB425
Angle Size Range :20 x 20 mm to 100 x 100 mm
Angles Thickness :3 to 12 mm (varies with size)
Channel Size Range :Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness :5 to 6 mm (varies with size)
Length :3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Lengths
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy Angle | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy Angle | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates based in Dubai, UAE, is a top supplier and stockist of premium metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on delivering exceptional products, we serve a broad array of industries, offering dependable solutions for varied applications. Our vast inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Incoloy angleprovides several notable benefits, making it well-suited for high-performance applications. Its outstanding resistance to oxidation, corrosion, and high-temperature settings guarantees lasting durability under severe conditions. The alloy’s exceptional mechanical characteristics, such as high tensile strength and creep resistance, render it appropriate for challenging industries like aerospace, power generation, and chemical processing. Incoloy angle additionally delivers good weldability and formability, allowing for easy fabrication. Moreover, its resistance to sulfuric and hydrochloric acids, together with its capacity to endure extreme thermal conditions, boosts its versatility and dependability in complex engineering projects.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | Incoloy Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes,we provide custom dimensions for Incoloy Angle to fit particular project requirements. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all your needs. For further information, reach out to us at sales@alshakruplates.ae.
Incoloy Angles are widely applied across industries requiring outstanding corrosion resistance, elevated-temperature capability, and structural strength. Within the chemical and petrochemical fields, they serve in heat exchangers, reactor vessels, piping systems, and storage tanks. The oil and gas sector uses them for offshore structures, valves, and pipelines. For marine purposes, they appear in seawater handling systems and shipbuilding parts, whereas power generation facilities integrate Incoloy Angles into boiler frameworks and turbine components.
