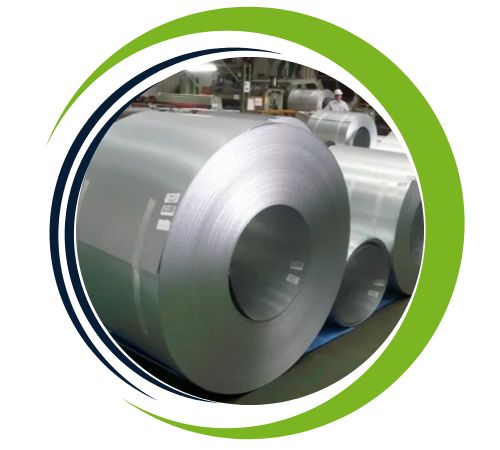

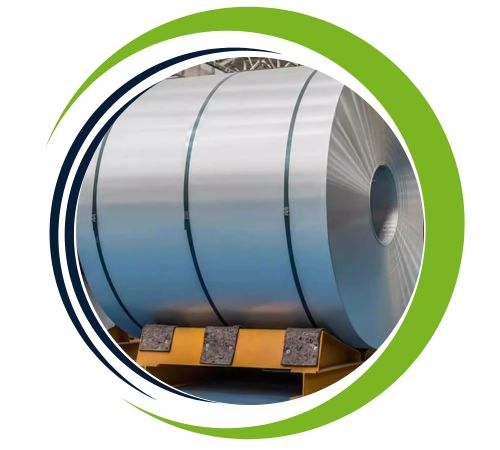

Al Shakru Sheets and Plates distinguishes itself as an excellent manufacturer and supplier of Hastelloy C276 Coil/Slitting Coils directly from Dubai, UAE . We are proud to supply premium nickel-molybdenum-chromium alloy products that are renowned for their exceptional corrosion resistance, strength, and durability. Our Hastelloy C276 Coils are manufactured with precision, employing sophisticated metallurgical methods and stringent quality control to ensure consistent thickness, a smooth surface finish, and dependable mechanical performance. These coils are purpose-built to excel in highly corrosive and challenging industrial environments, making them ideal for use in chemical, marine, and process engineering. Al Shakru Sheets and Plates serves a wide range of industries, such as chemical processing, petrochemical, marine engineering, and industrial manufacturing, delivering trustworthy Hastelloy solutions for essential requirements.
Hastelloy C276 Coil/Slitting Coils consist mainly of nickel, together with substantial proportions of molybdenum, chromium, iron, and small quantities of tungsten , which endows them with outstanding resistance to oxidation, pitting, crevice corrosion, and stress corrosion cracking . They offer high tensile strength, superb ductility, and thermal stability , which makes them well suited for harsh chemical and high-temperature environments.
| Specification | ASTM B575 / ASME SB575 |
|---|---|
| Thickness | Plate 0125″ to 5.00″ / Sheets 008″ to .0125″ |
| Sheet / Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheet / Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Sheets Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Plate / Sheets Size | 15NB to 150NB In |
| Tempers | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Coils Thickness | 0.3 mm to 120 mm |
| Coils Length | AS PER CUSTOMER’S REQUIREMENT |
| Form | Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| Hastelloy C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest levels of quality and compliance.
|
Coil/Coil Type |
Sizes |
Availability |
|---|---|---|
| ASTM B575 Hastelloy C276 Coil |
0.4mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
0.5mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
0.8mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
1mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
1.2mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
1.6mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
2mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
3mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
4mm |
√ |
| Hastelloy C276 ASTM B575 Coil |
5mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
6mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
8mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
10mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
12mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
16mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
20mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
25mm |
√ |
| Steel Coil |
Size (mm) |
Weight per Coil (Kg) |
Size(mm) |
Weight per Coil (Kg) |
|---|---|---|---|---|
| Hastelloy C276 Coil |
4000 x 2000 x 2.0 |
136.0 |
3000 x 1500 x 5.0 |
191.0 |
| Hastelloy C276 Coil |
4000 x 2000 x 3.0 |
204.0 |
4000 x 2000 x 5.0 |
340.0 |
| Hastelloy C276 Coil |
2500 x 1250 x 4.0 |
106.0 |
2500 x 1250 x 6.0 |
159.0 |
| Hastelloy C276 Coil |
3000 x 1500 x 4.0 |
153.0 |
3000 x 1500 x 6.0 |
230.0 |
| Hastelloy C276 Coil |
4000 x 2000 x 4.0 |
272.0 |
4000 x 2000 x 6.0 |
408.0 |
| Hastelloy C276 Coil |
2500 x 1250 x 5.0 |
133.0 |
The Hastelloy C276 coil/slitting coil delivers outstanding corrosion resistance, particularly in harsh environments involving sulfuric, hydrochloric, and acetic acids, and its nickel content in seawater boosts resistance to pitting and stress corrosion cracking. The alloy retains robust mechanical properties across a broad temperature range, ensuring durability under extreme conditions. It also demonstrates superb weldability, which makes it versatile. Hastelloy C276 is well suited for applications like pharmaceutical, aerospace and power generation, where dependability and long service life matter in demanding environments Its form as a coil or slitting coil allows for simple maintenance and customization.
You’ll commonly see Hastelloy C276 Coil/Slitting Coils put to work in chemical reactors, heat exchangers, flanges, and piping systems that contact highly corrosive substances. Across industrial and fabrication settings , they serve marine equipment, chemical processing machinery, and high-temperature components , ensuring they provide durability, reliability, and long-lasting performance. Their distinctive combination of mechanical strength, corrosion resistance, and versatility makes Hastelloy C276 Coil/Slitting Coils the preferred option for demanding chemical, marine, and industrial applications.
Our team stands ready to help you. Reach out to us for any questions or tailored solutions.
