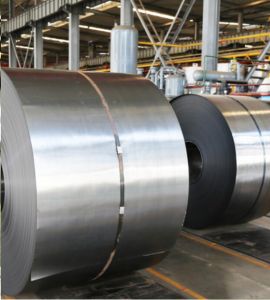

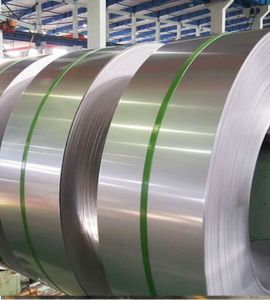

Al Shakru Sheets and Plates distinguishes itself as a premier manufacturer and supplier of Duplex Steel S32205 Coils and Slitting Coils directly from Dubai, UAE . We take great pride in supplying superior-quality duplex stainless steel products that are renowned for their exceptional corrosion resistance, notable strength, and enduring durability. Our Duplex Steel S32205 Coils and Slitting Coils are manufactured with precision, employing advanced metallurgical methods and stringent quality inspections to ensure consistent thickness, a polished surface finish, and dependable performance. These coils are ideally suited for numerous applications across the chemical, marine, and industrial sectors, offering superb resistance to pitting, crevice corrosion, and stress corrosion cracking.
At Al Shakru Sheets and Plates, we serve industries including oil and gas, chemical processing, marine engineering, and industrial manufacturing, providing trustworthy duplex steel solutions.
Our Duplex Steel S32205 Coils and Slitting Coils feature a well-balanced austenitic (≈50%) and ferritic (≈50%) stainless steel microstructure , fortified with alloying elements such as chromium (≈22%), nickel (≈5–6%), molybdenum (≈3%), nitrogen, and trace elements . They demonstrate remarkable tensile strength (≈650–800 MPa) and yield strength (≈450–550 MPa) , together with superb ductility and outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking . This makes them perfectly suited for demanding industrial and marine environments.

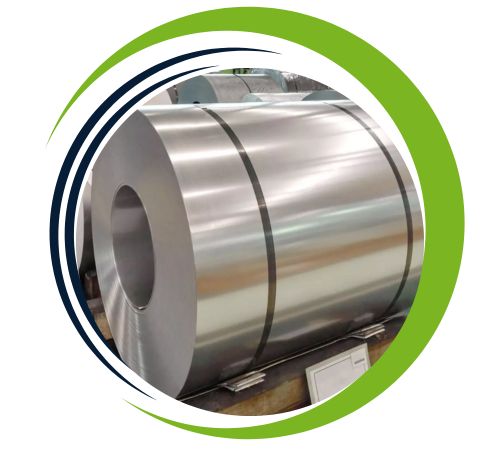

| Specifications | ASTM A240 / ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

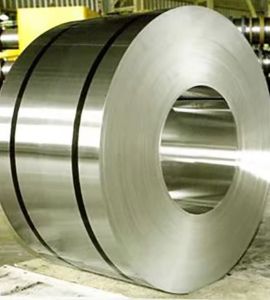

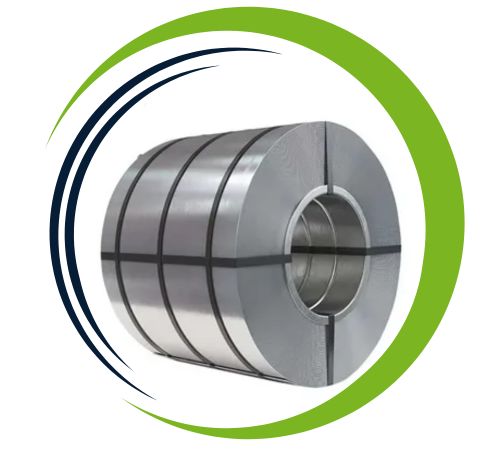

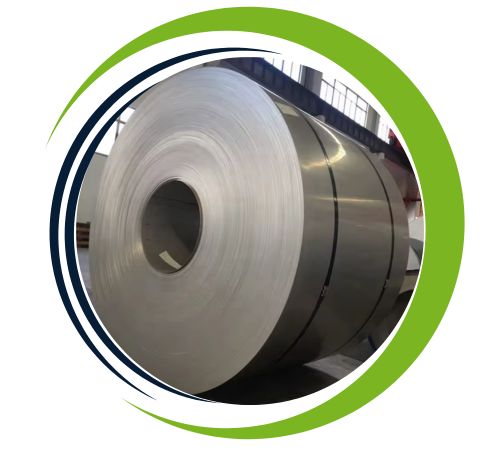

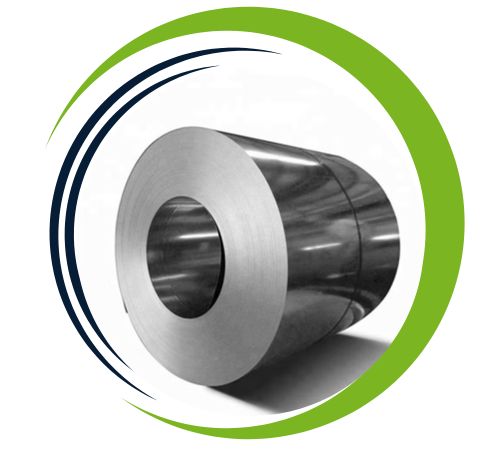

| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, hairline, sand blast, Brush, etching, Hot rolled coil (HR), Cold rolled coil (CR), SATIN (Met with Plastic Coated) etc |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form | Coils, Foils, Rolls, Plain Coil, Shim Coil, Strip |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| S32205 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
| TANDARD | WERKSTOFF NR. | UNS |
| S32205 | 1.4462 | S32205 |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to satisfy our customers particular needs. Focused on supplying superior products, we serve a broad spectrum of industries, offering dependable solutions for varied applications. Our vast inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Stocked Sizes | |
|---|---|
Size (in inches) | Size (in mm) |
.125″ | 3.18mm |
.134″ | 3.40mm |
.156″ | 3.96mm |
.187″ | 4.75mm |
.250″ | 6.35mm |
.312″ | 7.92mm |
.375″ | 9.53mm |
.500″ | 12.7mm |
.625″ | 15.9mm |
.750″ | 19.1mm |
.875″ | 22.2mm |
1″ | 25.4mm |
1.125″ | 28.6mm |
1.250″ | 31.8mm |
1.500″ | 38.1mm |
1.750″ | 44.5mm |
2″ | 50.8mm |
2.500″ | 63.5mm |
3″ | 76.2mm |
Duplex steel S32205 coils and slitting coilsdelivers numerous benefits, including outstanding corrosion resistance, particularly in high-chloride settings, which makes it perfect for the marine, chemical, and oil and gas industries Its unique blend of ferritic and austenitic structure delivers high strength, superb resistance to corrosion cracking and offers enhanced weldability S32205 features greater hardness and resistance to pitting and crevice corrosion than conventional stainless steel. Furthermore, it has low thermal expansion and outstanding fatigue strength, making it economical for applications that demand high performance and durability in severe conditions.
Yes,we provide custom sizes for Duplex Steel S32205 Coil/Slitting Coil to suit particular project needs. The team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all of your requirements. To learn more, reach out to us at sales@alshakruplates.ae.
You’ll find our Duplex Steel S32205 Coils and Slitting Coils widely used in heat exchangers, chemical processing equipment, pressure vessels, and offshore structures owing to their high strength-to-weight ratio and outstanding corrosion resistance. In industrial and fabrication settings , they are ideal for precision-engineered components, cladding, protective layers, and gaskets , where durability, reliability, and long-term performance are crucial. Additionally, these coils serve a key function in oil and gas, marine, and renewable energy projects , delivering operational efficiency, low maintenance, and an extended service life.
