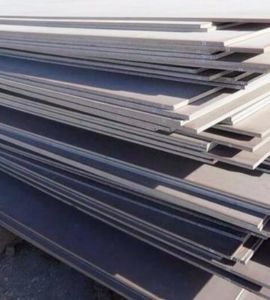

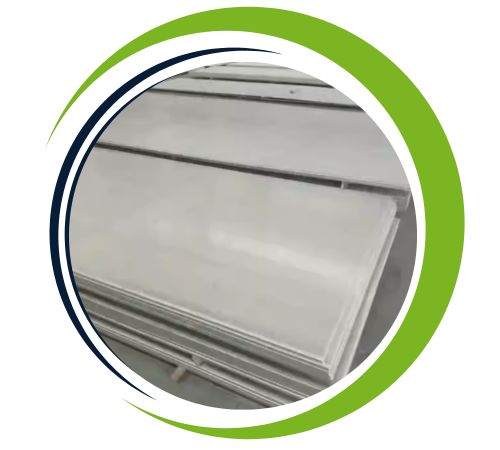

Al Shakru Sheets and Plates stands out as a premier manufacturer and supplier based in Dubai, UAE, with expertise in top-grade Alloy C263 Sheets and Plates engineered for high-temperature and demanding industrial applications. Renowned for their exceptional strength, thermal stability, and oxidation resistance, these sheets and plates are ideally suited for parts exposed to intense heat and mechanical stress. Al Shakru Sheets and Plates places great emphasis on precise manufacturing and rigorous quality checks to guarantee compliance with international standards. Serving a wide range of sectors such as aerospace, power generation, and chemical processing, the company delivers reliable Alloy C263 Sheets and Plates that ensure durable performance, superior mechanical properties, and structural integrity in vital engineering applications.
Alloy C263 Sheets and Plates are nickel-based superalloys composed mainly of nickel, chromium, cobalt, and molybdenum, with aluminum and titanium added to enhance strength at high temperatures. They deliver outstanding tensile and creep strength under elevated temperatures, together with remarkable oxidation and corrosion resistance. Generally, the tensile strength falls between 950 and 1100 MPa, whereas the yield strength sits around 550 to 650 MPa. On top of this, Alloy C263 Sheets and Plates offer solid ductility, thermal stability, and weldability, which makes them well suited for high-stress and high-temperature industrial components.
| Standard Specification : | AMS 5872 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | Ni | Co | Cr | Mo | Ti | Fe | Mn | Al | Si | Cu | C | B | S |
| Alloy C263 | 49 | 19-21 | 19-21 | 5.60-6.10 | 1.90-2.40 | 0.70 | 0.60 | 0.60 | 0.40 | 0.20 | 0.040 – 0.080 | 0.0050 | 0.0070 |
| Material | Temp °C | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation % | Hardness HRC |
|---|---|---|---|---|---|
| Alloy C263 Solution Treated (AMS 5872 / BS HR206) | RT | – | – | – | 22.5 max |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | RT | 580 (typical) | 973 (typical) | 39 – | |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | 780 | 403 (min) | 541 (min) | 9 | – |
We provide products supplied with both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
| Grade | UNS | Workstoff | AMS |
| Alloy C263 | N07623 | 2.4650 | 5872 |
Alloy C263 sheets and platesoffer excellent resistance to high temperature oxidation, corrosion and carburization, making them ideal for harsh environmental applications such as gas turbines and chemical processes They demonstrate excellent strength and durability sustain performance at high temperatures, ensuring reliability in extreme conditions. The alloy’s resistance to creep and thermal fatigue cracking extends the life of the components. C263 is also recognized for its excellent weldability, formability and durability, making it suitable for complex industrial applications. Its capacity to preserve structural integrity under stress boosts its value in critical engineering and construction applications.
These Alloy C263 Sheets and Plates are widely applied across industries requiring outstanding performance in demanding thermal and mechanical settings. Within aerospace, they typically appear in turbine blades, combustion chambers, and exhaust systems. In power generation, they are utilized in gas turbines, heat exchangers, and furnace components. The chemical and petrochemical sectors likewise depend on these sheets and plates for equipment that withstands elevated temperatures and corrosive conditions. Thanks to their extended service life, dependability, and structural strength, Alloy C263 Sheets and Plates remain the preferred option for critical applications where performance cannot be compromised.
